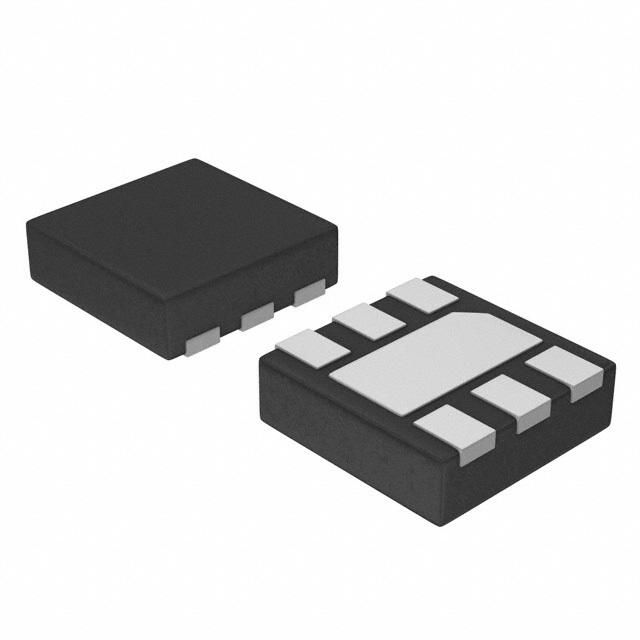

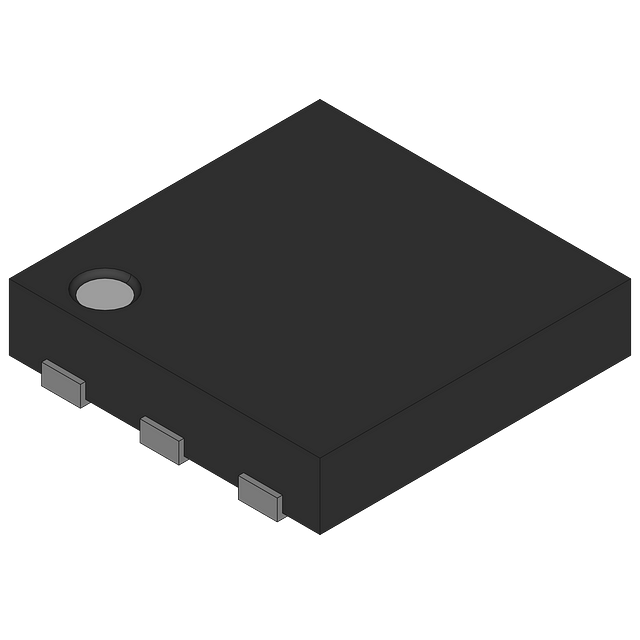

The NUP4212UPMUTAG is a unidirectional TVS diode with a clamping voltage of 14.3V and a reverse standoff voltage of 4V. It operates within a temperature range of -40°C to 125°C and is available in a 6-lead S-PDSO-N6 package. This component is lead-free and halogen-free, and is compliant with RoHS regulations. It features a low leakage current of 1uA and is suitable for use in high-reliability applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi NUP4212UPMUTAG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi NUP4212UPMUTAG technical specifications.
| Clamping Voltage | 14.3V |
| Depth | 1.2mm |
| Direction | Unidirectional |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 1.8mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 4 |
| Number of Lines | 6 |
| Operating Supply Voltage | 4V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 4V |
| RoHS Compliant | Yes |
| Series | NUP4212UPMU |
| Termination | SMD/SMT |
| Working Voltage | 12V |
| RoHS | Compliant |
