Unidirectional transient voltage suppressor (TVS) diode array offering 8 channels of ESD protection. Features a low clamping voltage, 4.3V reverse standoff voltage, and 6.47V minimum breakdown voltage. With a low leakage current of 1µA and 12pF capacitance per channel, this component is designed for efficient surge protection. Packaged in a compact 1.8mm x 1.2mm UDFN8 surface-mount package, it operates across a temperature range of -40°C to 85°C. This RoHS and Halogen Free compliant component is supplied on a 3000-piece tape and reel.
Capacitance12pF
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi NUP8011MUTAG technical specifications.
General
| Capacitance | 12pF |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Halogen Free | Halogen Free |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 1.8mm |
| Min Breakdown Voltage | 6.47V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Leakage Current | 1uA |
| Number of Channels | 8 |
| Number of Circuits | 1 |
| Number of Elements | 8 |
| Number of Lines | 8 |
| Operating Supply Voltage | 4.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 380mW |
| Polarity | Unidirectional |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6.47V |
| Reverse Standoff Voltage | 4.3V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NUP8011MUTAG Datasheet
Download the complete datasheet for Onsemi NUP8011MUTAG to view detailed technical specifications.
No datasheet is available for this part.

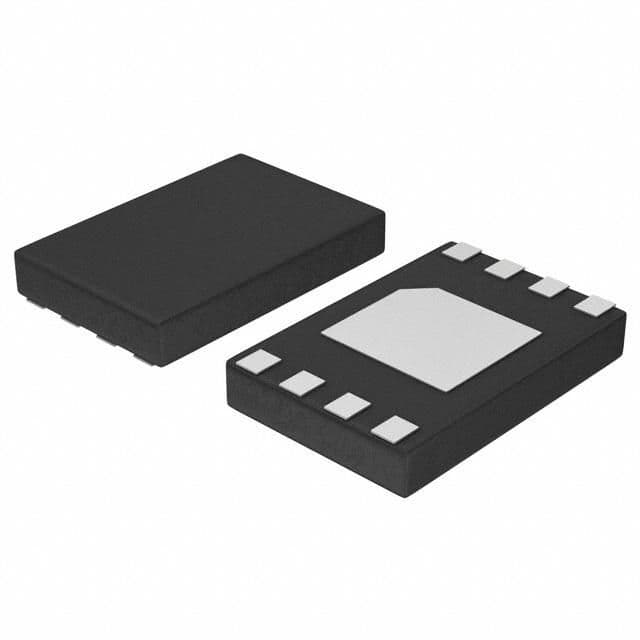

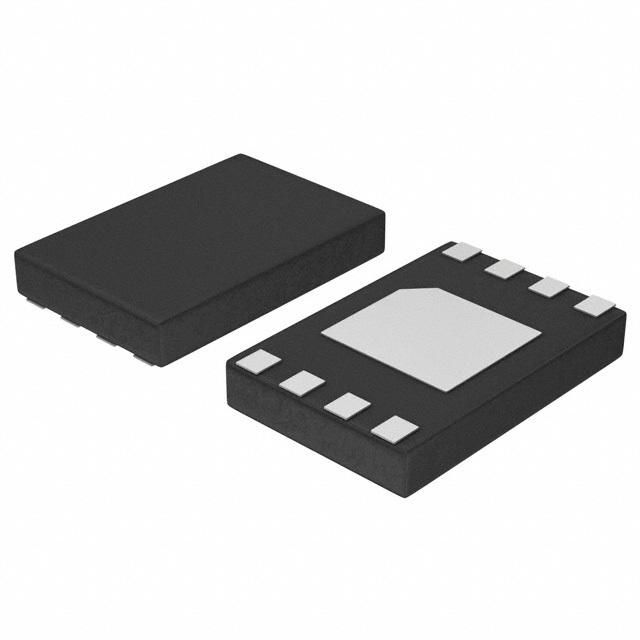

Product Images
