Onsemi
NVTA7002NT1G
Single N-Channel Small Signal MOSFET with ESD Protection 30V, 154mA, 7Ω Automotive version of the NTA7002N, SC-75 (SOT-416) 3 LEAD, 3000-REEL
PackageSC
PolarityN-CHANNEL
Power300mW
Quick Jump:
Technical Specifications
Onsemi NVTA7002NT1G technical specifications.
General
| Package/Case | SC |
| Continuous Drain Current (ID) | 154mA |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 1.4R |
| Element Configuration | Single |
| Fall Time | 60ns |
| Gate to Source Voltage (Vgs) | 10V |
| Input Capacitance | 20pF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Rds On Max | 7R |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 98ns |
| Turn-On Delay Time | 13ns |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NVTA7002NT1G Datasheet
Download the complete datasheet for Onsemi NVTA7002NT1G to view detailed technical specifications.
No datasheet is available for this part.

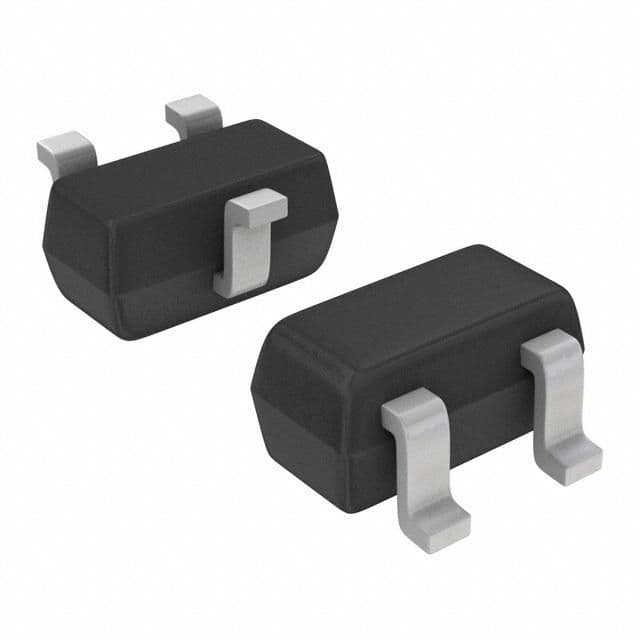

Product Images
