Onsemi
NZ9F16VT5G

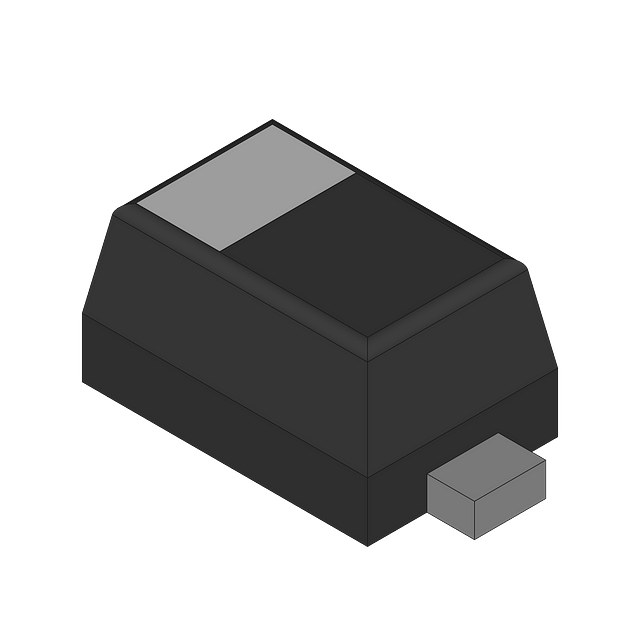

250 mW Zener Diode Voltage Regulator 5% Tolerance 16 V, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL
PackageSOD-923-2
Power200mW
Quick Jump:
Technical Specifications
Onsemi NZ9F16VT5G technical specifications.
General
Package/Case
SOD-923-2
Impedance
50R
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
200mW
Max Reverse Leakage Current
100nA
Package Quantity
8000
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
RoHS Compliant
Yes
Tolerance
5%
Voltage Tolerance
5%
Zener Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Onsemi NZ9F16VT5G Datasheet
Download the complete datasheet for Onsemi NZ9F16VT5G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
