Onsemi
NZ9F6V8T5G
250 mW Zener Diode Voltage Regulator 5% Tolerance 6.8 V, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL
PackageSOD-923-2
Power200mW
Quick Jump:
Technical Specifications
Onsemi NZ9F6V8T5G technical specifications.
General
| Package/Case | SOD-923-2 |
| Impedance | 40R |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Max Reverse Leakage Current | 500nA |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Zener Voltage | 6.8V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NZ9F6V8T5G Datasheet
Download the complete datasheet for Onsemi NZ9F6V8T5G to view detailed technical specifications.
No datasheet is available for this part.

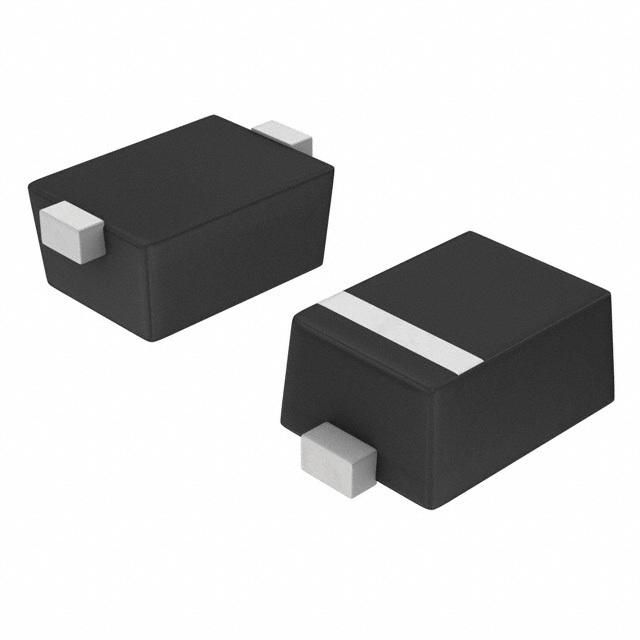

Product Images
