Unidirectional TVS Diode, SOT-553 package, offering 4 channels of ESD protection. Features a low clamping voltage of 13V and a reverse standoff voltage of 4.3V. Operates with a minimum breakdown voltage of 6.47V and a DC rated voltage of 6.8V. Exhibits a low leakage current of 1uA and a maximum surge current of 1.6A. This lead-free, RoHS compliant component boasts a peak pulse power of 20W and a capacitance of 15pF, suitable for operation between -55°C and 150°C.
PackageSOT-553-5
Capacitance15pF
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi NZQA6V8AXV5T1 technical specifications.
General
| Capacitance | 15pF |
| Package/Case | SOT-553-5 |
| Clamping Voltage | 13V |
| Depth | 1.2mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 1.6mm |
| Min Breakdown Voltage | 6.47V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Surge Current | 1.6A |
| Number of Channels | 4 |
| Number of Lines | 4 |
| Number of Unidirectional Channels | 4 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1.6A |
| Peak Pulse Power | 20W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 4.3V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 6.8V |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi NZQA6V8AXV5T1 Datasheet
Download the complete datasheet for Onsemi NZQA6V8AXV5T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

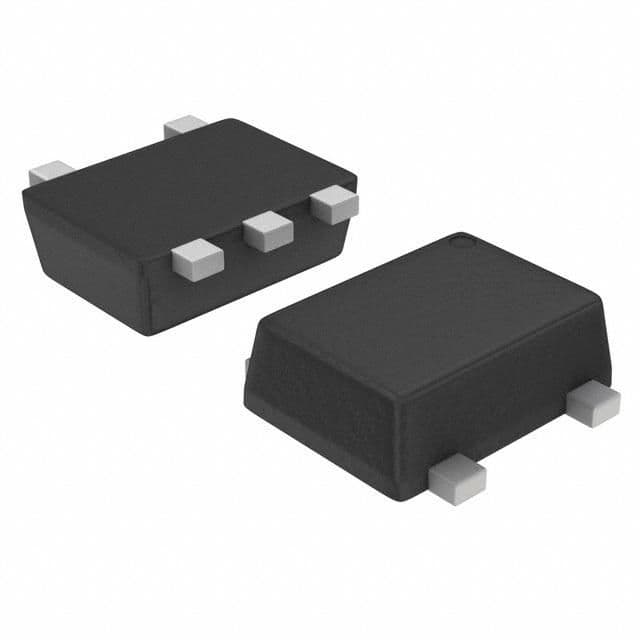

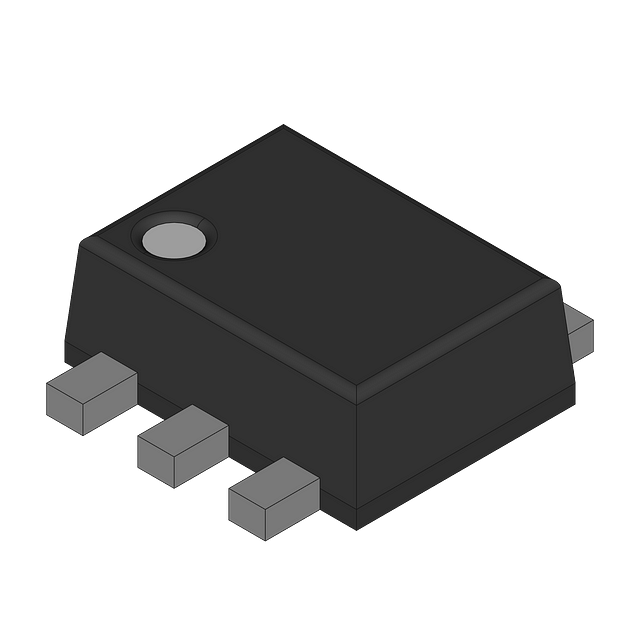

Product Images
