PackageSOT-553-5
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi NZQA6V8AXV5T2 technical specifications.
General
Package/Case
SOT-553-5
Clamping Voltage
13V
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Min Breakdown Voltage
6.47V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Surge Current
1.6A
Number of Channels
4
Number of Lines
4
Number of Unidirectional Channels
4
Package Quantity
4000
Packaging
Tape and Reel
Peak Pulse Current
1.6A
Peak Pulse Power
20W
Polarity
Unidirectional
Power Line Protection
No
Reverse Standoff Voltage
4.3V
RoHS Compliant
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Onsemi NZQA6V8AXV5T2 Datasheet
Download the complete datasheet for Onsemi NZQA6V8AXV5T2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

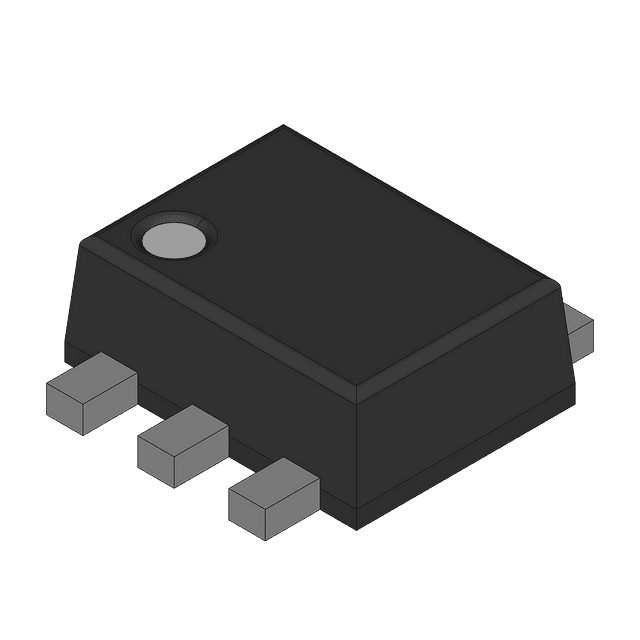

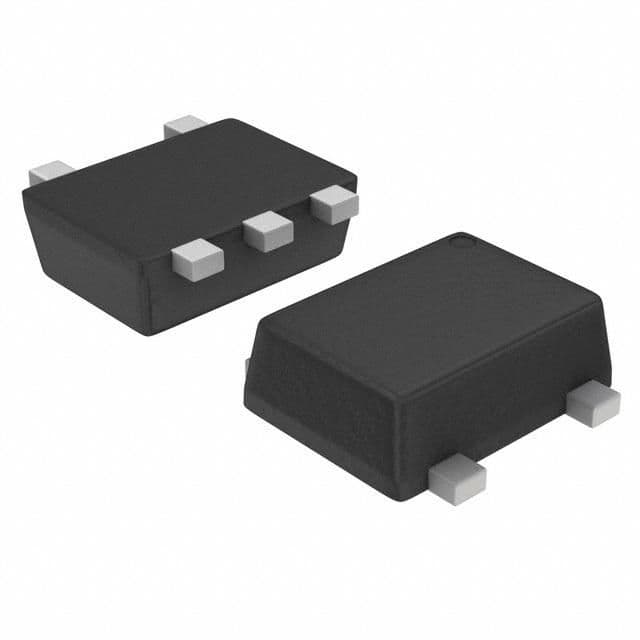

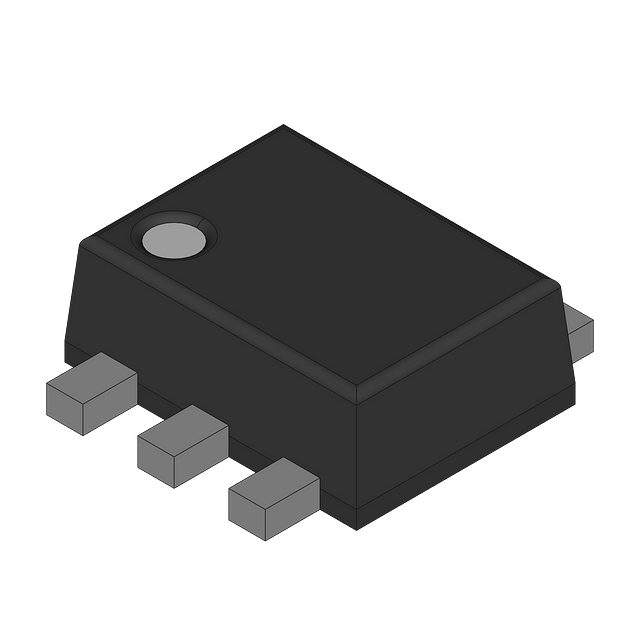

Product Images
