600W unidirectional transient voltage suppressor, featuring a 15V reverse standoff voltage and 14.3V minimum breakdown voltage. This axial leaded component offers ESD protection with a 21.2V clamping voltage and 28A peak pulse current handling. Operating across a -55°C to 150°C temperature range, it boasts a low 5uA leakage current. Packaged in a tape and reel for 4000 units, this lead-free and RoHS compliant device is ideal for voltage surge protection.
PackageAxial
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Onsemi P6KE15ARLG technical specifications.
General
| Package/Case | Axial |
| Clamping Voltage | 21.2V |
| Clamping Voltage-Max | 21.2V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 3.68mm |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 8.89mm |
| Max Breakdown Voltage | 15.8V |
| Min Breakdown Voltage | 14.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 28A |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 12.8V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 28A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 14.3V |
| Reverse Standoff Voltage | 12.8V |
| RoHS Compliant | Yes |
| Termination | Axial |
| Width | 3.68mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi P6KE15ARLG Datasheet
Download the complete datasheet for Onsemi P6KE15ARLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

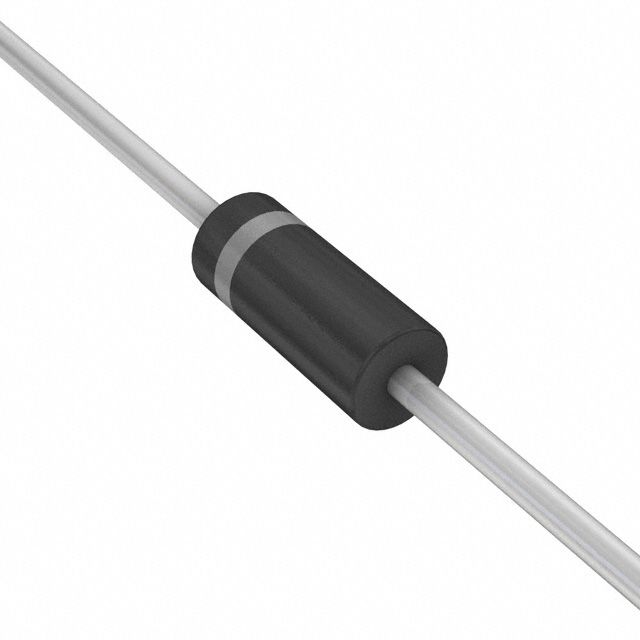

Product Images
