600W unidirectional transient voltage suppressor (TVS) diode with a 154V reverse standoff voltage. Features a 171V minimum breakdown voltage and a 246V clamping voltage. Operates across a temperature range of -55°C to 150°C with a low leakage current of 5µA. Designed for axial lead termination and packaged in a 4000-piece tape and reel.
PackageAxial
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Onsemi P6KE180ARLG technical specifications.
General
| Package/Case | Axial |
| Clamping Voltage | 246V |
| Clamping Voltage-Max | 274V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Max Breakdown Voltage | 189V |
| Min Breakdown Voltage | 171V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600W |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 2.4A |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 154V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2.4A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Dissipation | 600W |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 171V |
| Reverse Standoff Voltage | 154V |
| RoHS Compliant | Yes |
| Series | Surmetic™ |
| Termination | Axial |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi P6KE180ARLG Datasheet
Download the complete datasheet for Onsemi P6KE180ARLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

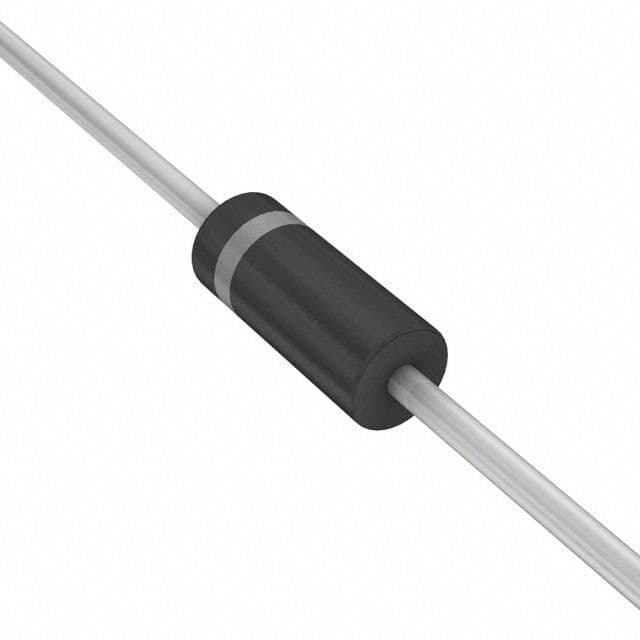

Product Images
