600W unidirectional Transient Voltage Suppressor (TVS) diode with a 33.3V reverse standoff voltage and 37.1V minimum breakdown voltage. Features a 53.9V clamping voltage and 11.2A peak pulse current, designed for ESD protection. Operates across a -55°C to 150°C temperature range with a low 5uA leakage current. Packaged in an axial lead Surmetic 40 case, supplied on a 4000-piece tape and reel.
PackageAxial
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi P6KE39ARLG technical specifications.
General
| Package/Case | Axial |
| Clamping Voltage | 53.9V |
| Diameter | 3.68mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 8.89mm |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 8.89mm |
| Min Breakdown Voltage | 37.1V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 5uA |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 11.2A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 37.1V |
| Reverse Standoff Voltage | 33.3V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi P6KE39ARLG Datasheet
Download the complete datasheet for Onsemi P6KE39ARLG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

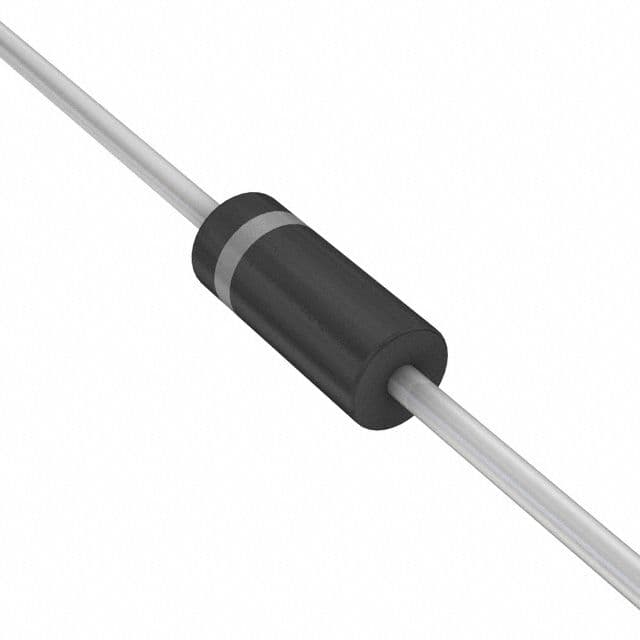

Product Images
