The RHRA1560CC is a general purpose rectifier from Onsemi with a maximum operating temperature of 175°C and a minimum operating temperature of -65°C. It can handle a maximum reverse voltage of 600V and a maximum surge current of 200A. The device is available in a through hole, radial package quantity of 30, packaged in rail/tube. It is RoHS compliant and has a reverse recovery time of 40ns.
MountingThrough Hole, Radial
Quick Jump:
Technical Specifications
Onsemi RHRA1560CC technical specifications.
General
| Average Rectified Current | 15A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Reverse Current | 100uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 200A |
| Mount | Through Hole, Radial |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Reverse Recovery Time | 40ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi RHRA1560CC Datasheet
Download the complete datasheet for Onsemi RHRA1560CC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

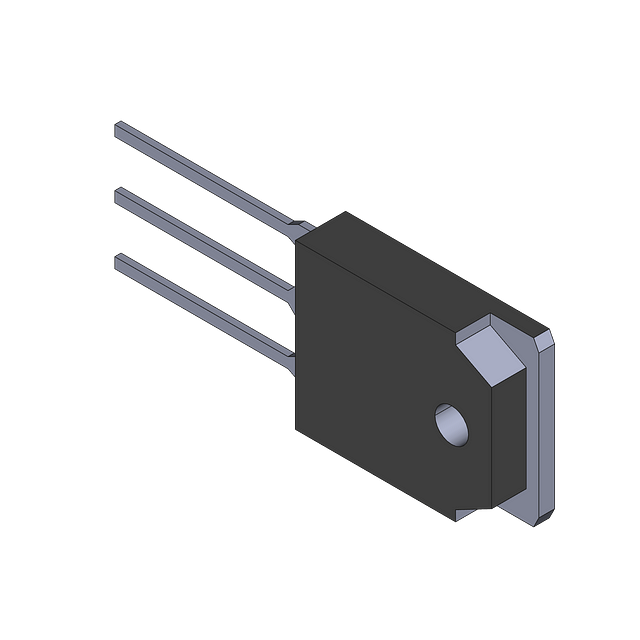

Product Images
