General purpose rectifier diode with 1A average rectified current and 100V maximum repetitive reverse voltage. Features a 1A forward current, 30A maximum surge current, and 150ns reverse recovery time. Housed in an SMA surface mount package with dimensions of 4.75mm length, 2.95mm width, and 2.2mm height. Operates across a temperature range of -55°C to 150°C and offers 1.19W power dissipation. This lead-free, RoHS compliant component is supplied on tape and reel.
PackageSMA
Capacitance10pF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi RS1B technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 10pF |
| Package/Case | SMA |
| Current Rating | 1A |
| Element Configuration | Single |
| Forward Current | 1A |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 4.75mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 100V |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Power Dissipation | 1.19W |
| Radiation Hardening | No |
| Reverse Recovery Time | 150ns |
| Reverse Recovery Time-Max | 150ns |
| Reverse Voltage | 100V |
| RoHS Compliant | Yes |
| DC Rated Voltage | 100V |
| Weight | 0.106g |
| Width | 2.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi RS1B Datasheet
Download the complete datasheet for Onsemi RS1B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

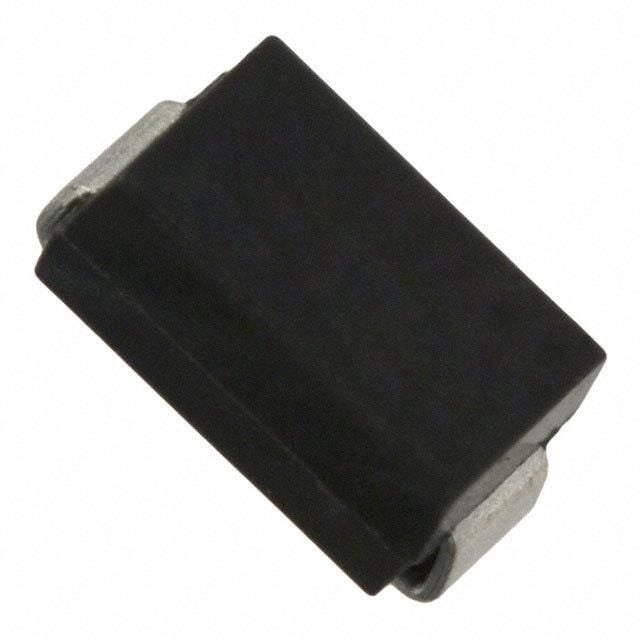

Product Images
