Dual operational amplifier featuring a 10MHz gain bandwidth product and 9V/µs slew rate. This general-purpose amplifier offers low noise performance with an 80dB common mode rejection ratio and 100dB power supply rejection ratio. Designed for operation across a wide temperature range of -55°C to +125°C, it supports dual supply voltages from 3V to 20V. The component is housed in an 8-lead PDIP package, with 50 units per tube, and is RoHS compliant.
PackagePDIP
Current8mA
Power1.2W
Quick Jump:
Technical Specifications
Onsemi SE5532NG technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 80dB |
| Gain Bandwidth Product | 10MHz |
| Input Bias Current | 200nA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 20V |
| Min Dual Supply Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Nominal Gain Bandwidth Product | 10MHz |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 20V |
| Output Current | 38mA |
| Output Current per Channel | 38mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.2W |
| Power Supply Rejection Ratio (PSRR) | 100dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 9V/µs |
| Supply Current | 8mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 10MHz |
| Voltage Gain | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SE5532NG Datasheet
Download the complete datasheet for Onsemi SE5532NG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

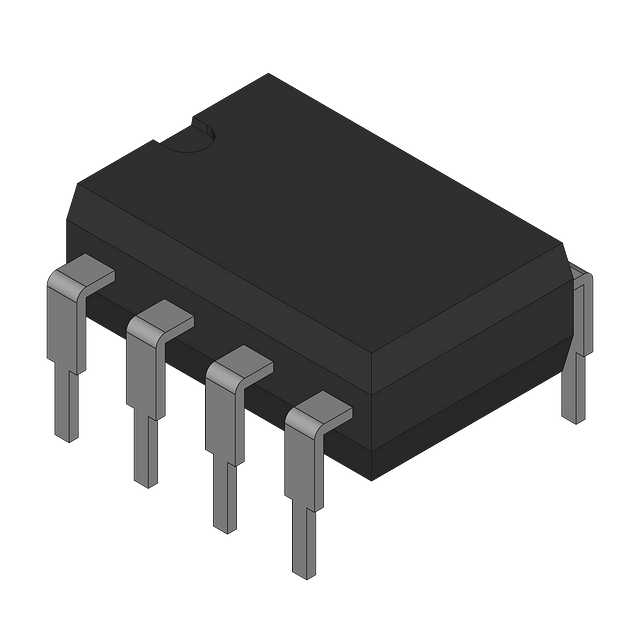

Product Images
