PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi SG6108DZ technical specifications.
General
Package/Case
DIP
Height
3.3mm
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Power Dissipation
1.5W
Max Supply Voltage
5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Voltages Monitored
2
Operating Supply Current
10mA
Output Type
PUSH-PULL
Overvoltage Threshold
6.1V
Package Quantity
22
Packaging
Rail/Tube
RoHS Compliant
Yes
Undervoltage Threshold
3.6V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Onsemi SG6108DZ Datasheet
Download the complete datasheet for Onsemi SG6108DZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

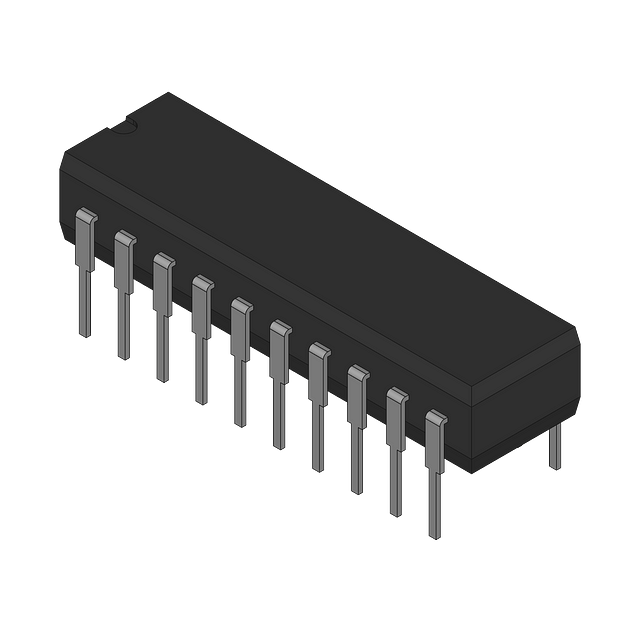

Product Images
