PackageSOT-23-6
Current Rating4.1A
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Onsemi SI3442DV technical specifications.
General
Package/Case
SOT-23-6
Continuous Drain Current (ID)
4.1A
Current Rating
4.1A
Drain to Source Breakdown Voltage
20V
Drain to Source Resistance
39mR
Drain to Source Voltage (Vdss)
20V
Fall Time
25ns
Gate to Source Voltage (Vgs)
8V
Input Capacitance
365pF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.6W
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
1.6W
Rds On Max
60mR
RoHS Compliant
Yes
Turn-Off Delay Time
28ns
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Onsemi SI3442DV Datasheet
Download the complete datasheet for Onsemi SI3442DV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

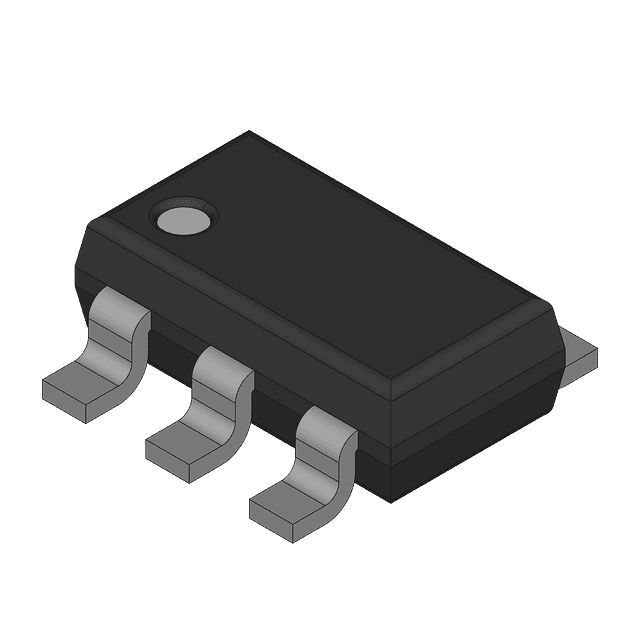

Product Images
