Unidirectional Transient Voltage Suppressor (TVS) diode designed for surface mount applications. Features 600W peak pulse power dissipation and 58.3A peak pulse current handling. Operates at 6V DC rated voltage with a 6V reverse standoff voltage. Breakdown voltage ranges from 6.67V to 7.37V, with a clamping voltage of 10.3V. Packaged in a DO-214AA (SMB) plastic case with tin terminal finish, suitable for tape and reel packaging.
PackageDO-214AA
MountingSurface Mount
PolarityUnidirectional
Power600W
Quick Jump:
Technical Specifications
Onsemi SMBJ6V0A technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
10.3V
Clamping Voltage-Max
10.3V
Diode Element Material
SILICON
Diode Type
ZENER
Direction
Unidirectional
Height
2.45mm
JEDEC-95 Code
DO-214AA
JESD-30 Code
R-PDSO-C2
Lead Free
Lead Free
Leakage Current
800uA
Length
4.75mm
Max Breakdown Voltage
7.37V
Min Breakdown Voltage
6.67V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
600W
Max Reverse Leakage Current
800uA
Max Surge Current
58.3A
Moisture Sensitivity Level
1
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
6V
Package Body Material
Plastic
Package Quantity
1
Package Shape
Rectangular
Packaging
Tape and Reel
Peak Pulse Current
58.3A
Peak Pulse Power
600W
Peak Reflow Temperature (Cel)
260°C
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6.67V
Reverse Standoff Voltage
6V
RoHS Compliant
Yes
Series
SMBJ
Surface Mount
Yes
Technology
AVALANCHE
Terminal Finish
Tin
Terminal Form
C BEND
Terminal Position
DUAL
Termination
SMD/SMT
DC Rated Voltage
6V
Weight
0.18g
Width
3.95mm
Compliance
RoHS
Compliant
Datasheet
Onsemi SMBJ6V0A Datasheet
Download the complete datasheet for Onsemi SMBJ6V0A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

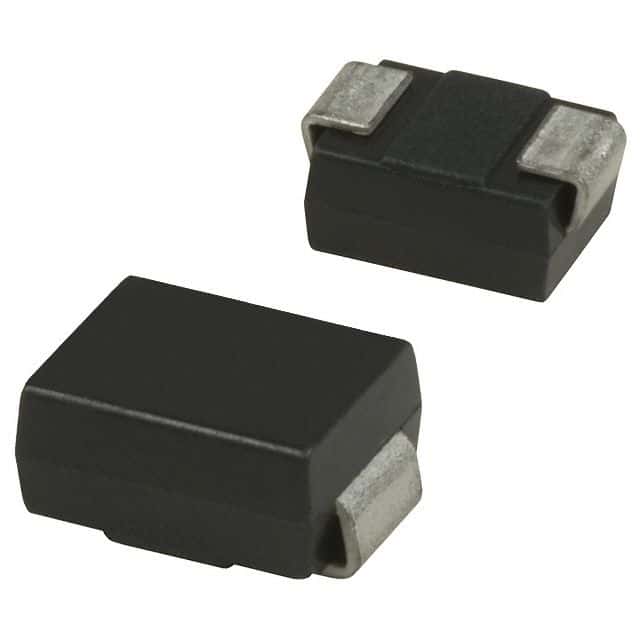

Product Images
