Unidirectional Transient Voltage Suppressor (TVS) diode in SMC package, offering 1.5kW peak pulse power and 1.5kW power dissipation. Features a 10V DC rated voltage and 10V reverse standoff voltage, with a breakdown voltage range of 11.1V to 12.3V and a clamping voltage of 17V. Operates from -55°C to 150°C, with a maximum reverse leakage current of 5uA. Surface mountable, lead-free, and RoHS compliant, supplied on a 3000-piece tape and reel.
PackageSMC
MountingSurface Mount
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Onsemi SMCJ10A technical specifications.
General
| Package/Case | SMC |
| Clamping Voltage | 17V |
| Clamping Voltage-Max | 17V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.75mm |
| Lead Free | Lead Free |
| Length | 7.15mm |
| Max Breakdown Voltage | 12.3V |
| Min Breakdown Voltage | 11.1V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 5uA |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 88.2A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 10V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 10V |
| Weight | 0.3g |
| Width | 6.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SMCJ10A Datasheet
Download the complete datasheet for Onsemi SMCJ10A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

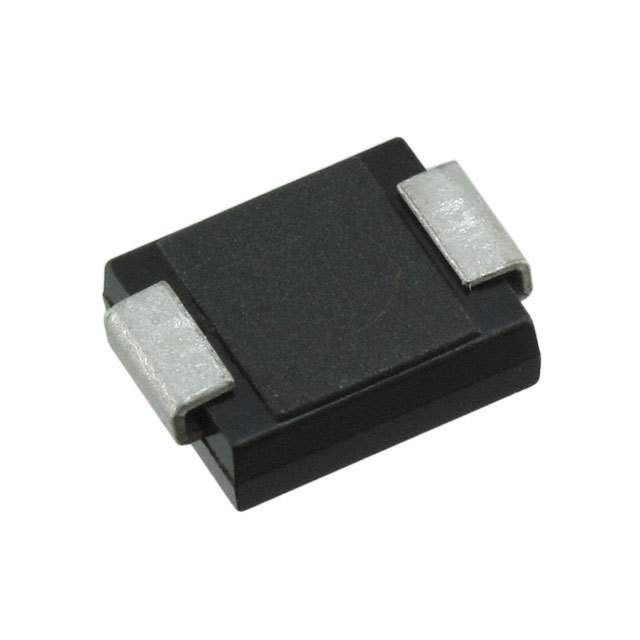

Product Images
