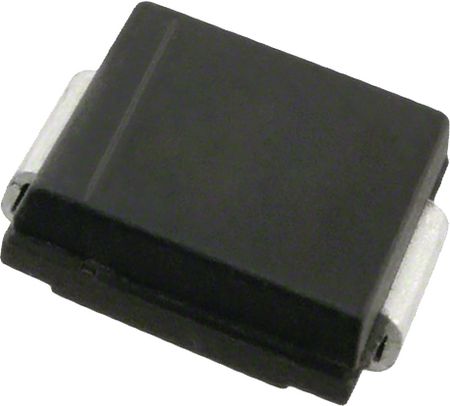

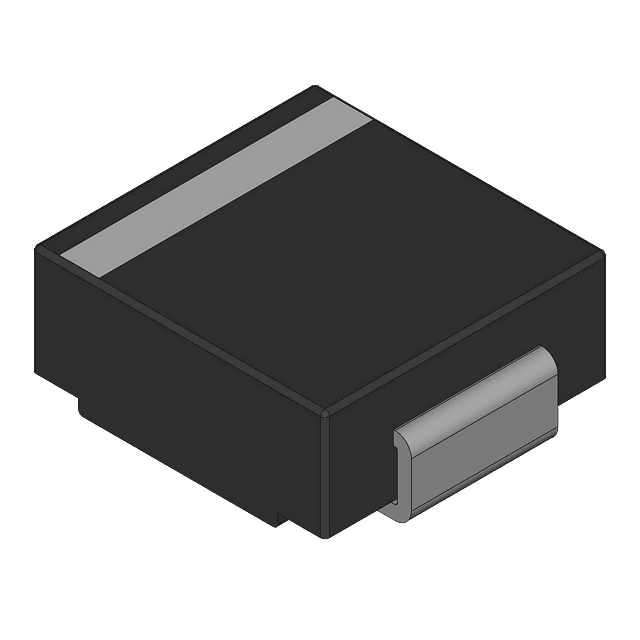

1500W bidirectional TVS diode for transient voltage suppression. Features a 10V reverse standoff voltage and 17V clamping voltage, with a minimum breakdown voltage of 11.1V. Designed for surface mount applications in a DO-214AB package, offering a maximum operating temperature of 150°C and a minimum of -55°C. Handles a peak pulse current of 88.2A and a maximum power dissipation of 1.5kW. This lead-free, RoHS-compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi SMCJ10CA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi SMCJ10CA technical specifications.
| Package/Case | DO-214AB |
| Clamping Voltage | 17V |
| Direction | Bidirectional |
| Height | 2.75mm |
| Lead Free | Lead Free |
| Length | 7.15mm |
| Min Breakdown Voltage | 11.1V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 88.2A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 10V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 88.2A |
| Peak Pulse Power | 1.5kW |
| Polarity | Bidirectional |
| Reverse Standoff Voltage | 10V |
| RoHS Compliant | Yes |
| Series | SMCJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 10V |
| Weight | 0.3g |
| Width | 6.25mm |
| RoHS | Compliant |
