Unidirectional Transient Voltage Suppressor (TVS) diode, 1.5kW peak pulse power, 30V reverse standoff voltage. Features 33.3V minimum breakdown voltage and 36.8V maximum breakdown voltage. Offers a 48.4V clamping voltage with 5µA leakage current. Designed for surface mount applications in a DO-214AB package, operating from -55°C to 150°C.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Onsemi SMCJ30A technical specifications.
General
| Package/Case | DO-214AB |
| Clamping Voltage | 48.4V |
| Clamping Voltage-Max | 48.4V |
| Direction | Unidirectional |
| Height | 2.75mm |
| Lead Free | Lead Free |
| Leakage Current | 5uA |
| Length | 7.15mm |
| Max Breakdown Voltage | 36.8V |
| Min Breakdown Voltage | 33.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 31A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 30V |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Peak Pulse Current | 31A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 30V |
| RoHS Compliant | Yes |
| Series | SMCJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 30V |
| Weight | 0.3g |
| Width | 8.23mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SMCJ30A Datasheet
Download the complete datasheet for Onsemi SMCJ30A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

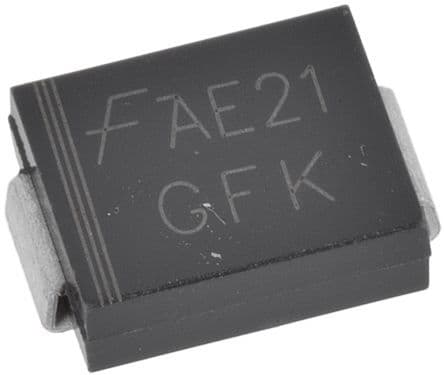

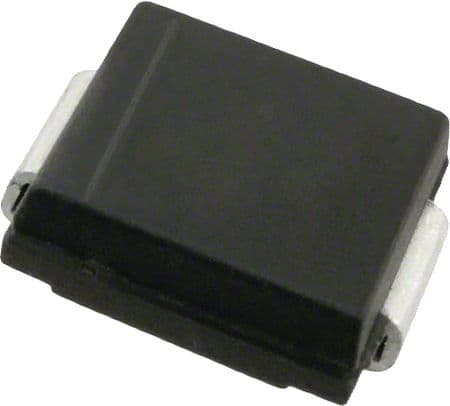

Product Images
