Unidirectional TVS diode for surge suppression, featuring 1.5kW peak pulse power and 16A peak pulse current. Operating supply voltage is 58V DC, with a reverse standoff voltage of 58V. Clamping voltage is 93.6V, and breakdown voltage ranges from 64.4V to 71.2V. This surface mount component, packaged in DO-214AB, operates from -55°C to 150°C and is RoHS compliant.
PackageDO-214AB
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi SMCJ58A technical specifications.
General
| Package/Case | DO-214AB |
| Clamping Voltage | 93.6V |
| Direction | Unidirectional |
| Height | 2.75mm |
| Lead Free | Lead Free |
| Length | 7.15mm |
| Max Breakdown Voltage | 71.2V |
| Min Breakdown Voltage | 64.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 16A |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Voltage | 58V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 16A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 58V |
| RoHS Compliant | Yes |
| Series | SMCJ |
| Termination | SMD/SMT |
| DC Rated Voltage | 58V |
| Weight | 0.3g |
| Width | 6.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SMCJ58A Datasheet
Download the complete datasheet for Onsemi SMCJ58A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

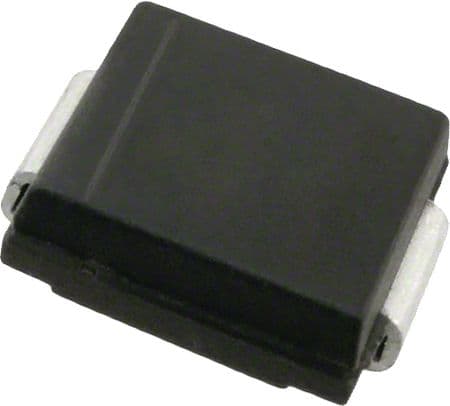

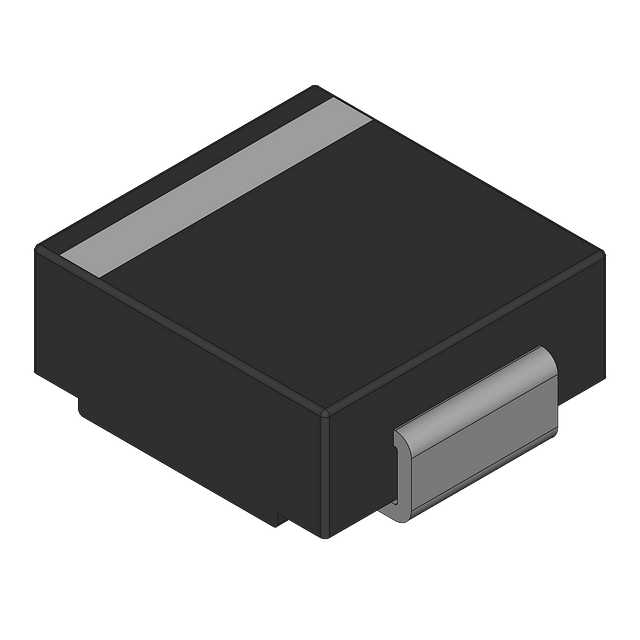

Product Images
