Unidirectional Transient Voltage Suppressor (TVS) diode offering 200W peak pulse power and 9.3A peak pulse current. Features a 13V reverse standoff voltage, 14.4V minimum breakdown voltage, and 21.5V clamping voltage. Designed for ESD protection with a low leakage current of 1µA. Housed in a compact SOD-123FL package with SMD/SMT termination, operating from -55°C to 150°C.
Voltage Rating13V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi SMF13AT1G technical specifications.
General
| Clamping Voltage | 21.5V |
| Depth | 1.65mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 0.88mm |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 2.7mm |
| Min Breakdown Voltage | 14.4V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 9.3A |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 13V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 9.3A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 13V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Termination | SMD/SMT |
| DC Rated Voltage | 13V |
| Width | 1.8mm |
| Working Voltage | 13V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SMF13AT1G Datasheet
Download the complete datasheet for Onsemi SMF13AT1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

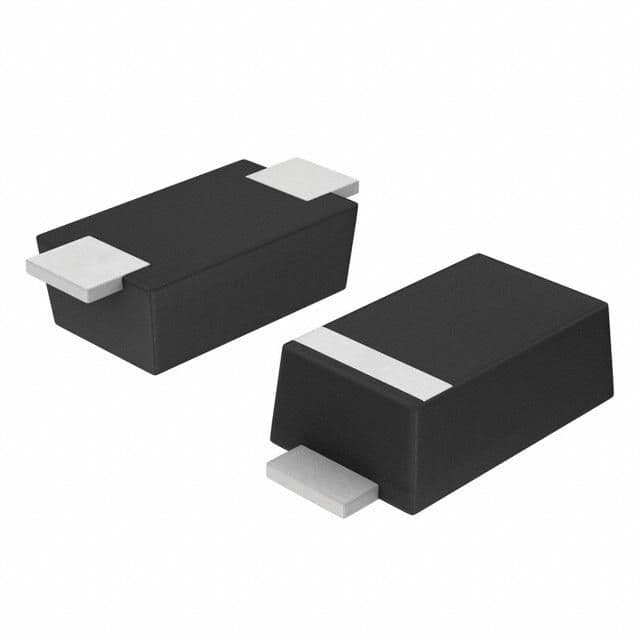

Product Images
