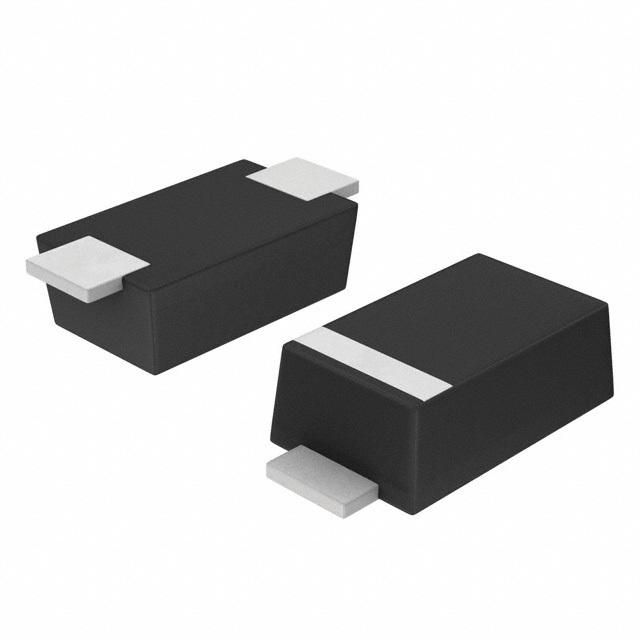

Unidirectional TVS Diode for surge suppression, featuring a 30V DC rated voltage and 33.3V to 36.8V breakdown voltage range. This component offers 200W peak pulse power dissipation and 4.1A peak pulse current handling. Operating across a wide temperature range of -55°C to 150°C, it provides ESD protection and is RoHS compliant. The SOD123FL package measures 2.9mm in length, 1.8mm in width, and 0.88mm in height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi SMF30AT1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 0.88mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Breakdown Voltage | 36.8V |
| Min Breakdown Voltage | 33.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200W |
| Max Reverse Leakage Current | 1uA |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 4.1A |
| Peak Pulse Power | 200W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 30V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| DC Rated Voltage | 30V |
| Width | 1.8mm |
| Working Voltage | 30V |
| RoHS | Compliant |
