Schottky diode with 40V repetitive reverse voltage and 3A average rectified current. Features a 100A peak non-repetitive surge current and 500µA maximum reverse leakage. This surface mount component, housed in an SMC (DO-214AB) package, operates from -55°C to 150°C and offers a maximum power dissipation of 2.27W. Constructed with silicon and lead-free, RoHS-compliant materials, it is suitable for high-frequency applications.
PackageSMC
Voltage40V
Current3A
Current Rating3A
Quick Jump:
Technical Specifications
Onsemi SS34 technical specifications.
General
| Average Rectified Current | 3A |
| Package/Case | SMC |
| Current | 3A |
| Current Rating | 3A |
| Diode Element Material | SILICON |
| Forward Current | 3A |
| Height | 2.75mm |
| JEDEC-95 Code | DO-214AB |
| JESD-30 Code | R-PDSO-C2 |
| Lead Free | Lead Free |
| Length | 7.15mm |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.27W |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 500uA |
| Max Reverse Leakage Current | 500uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 100A |
| Moisture Sensitivity Level | 1 |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Output Current | 3A |
| Package Body Material | Plastic |
| Package Quantity | 1 |
| Package Shape | Rectangular |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 100A |
| Peak Reflow Temperature (Cel) | 260°C |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Surface Mount | Yes |
| Technology | SCHOTTKY |
| Terminal Finish | Tin |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Voltage | 40V |
| DC Rated Voltage | 40V |
| Width | 6.25mm |
Compliance
| RoHS | Compliant |
| Reach Status | REACH Unaffected |
| ECCN | EAR99 |
Datasheet
Onsemi SS34 Datasheet
Download the complete datasheet for Onsemi SS34 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

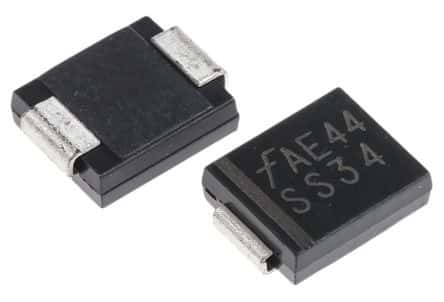

Product Images
