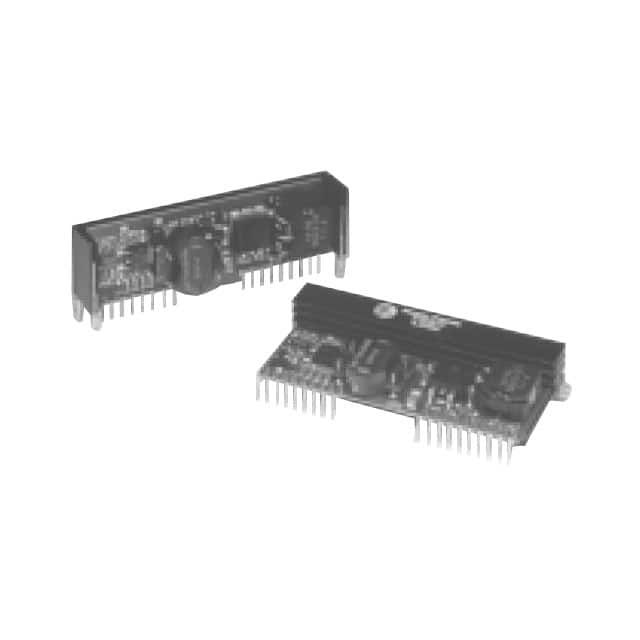

The STK672-732AN-E is a dual stepper motor driver from Onsemi, featuring a maximum collector current of 2A and an operating frequency range of 0 kHz to 50 kHz. It is designed for use in through hole mounting and is packaged in a SIP format. The device is RoHS compliant and has a maximum power dissipation of 7.3W. It operates within a temperature range of 0°C to 105°C and has a maximum supply voltage of 5.25V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi STK672-732AN-E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Height | 4.5mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 29.2mm |
| Max Collector Current | 2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 7.3W |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Motor Type | Stepper |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Operating Frequency | 0 kHz to 50 kHz |
| Operating Supply Current | 4.4mA |
| Output Current | 2.2A |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 14.4mm |
| RoHS | Compliant |
Download the complete datasheet for Onsemi STK672-732AN-E to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Onsemi STK672-732AN-E
onsemi product discontinuance notice PD23900Z9 extends the last ship date to Dec 31, 2022, for various STK series modules with no direct replacements.
