Technical Specifications
Onsemi SZMSQA6V1W5T2G technical specifications.
General
| Capacitance | 90pF |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Min Breakdown Voltage | 6.1V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Number of Lines | 4 |
| Number of Unidirectional Channels | 4 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 150W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 3V |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi SZMSQA6V1W5T2G Datasheet
Download the complete datasheet for Onsemi SZMSQA6V1W5T2G to view detailed technical specifications.
No datasheet is available for this part.

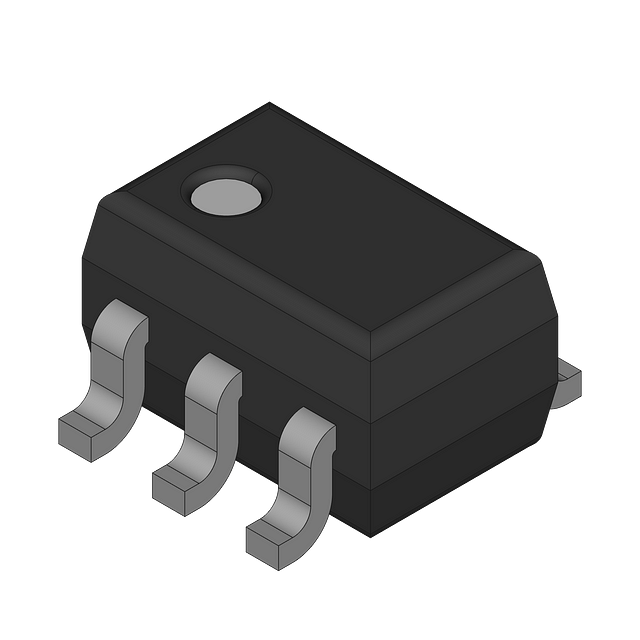

Product Images
