PNP Bipolar Power Transistor, TO-220 package, featuring a 60V Collector-Emitter Voltage (VCEO) and 60V Collector Base Voltage (VCBO). Maximum Collector Current is 3A, with a maximum power dissipation of 40W. This transistor operates with a minimum DC current gain (hFE) of 25 and a transition frequency of 3MHz. It is RoHS compliant and designed for operation between -65°C and 150°C.
Frequency3MHz
PackageTO-220-3
PolarityPNP
Power2W
Quick Jump:
Technical Specifications
Onsemi TIP32AG technical specifications.
General
| Package/Case | TO-220-3 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 1.2V |
| Collector Emitter Voltage (VCEO) | 60V |
| Collector-emitter Voltage-Max | 1.2V |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 3MHz |
| Gain Bandwidth Product | 3MHz |
| Height | 0.62inch |
| hFE Min | 25 |
| Length | 0.404inch |
| Max Collector Current | 3A |
| Max Frequency | 3MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 40W |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | PNP |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 3MHz |
| DC Rated Voltage | -60V |
| Width | 0.19inch |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi TIP32AG Datasheet
Download the complete datasheet for Onsemi TIP32AG to view detailed technical specifications.
No datasheet is available for this part.

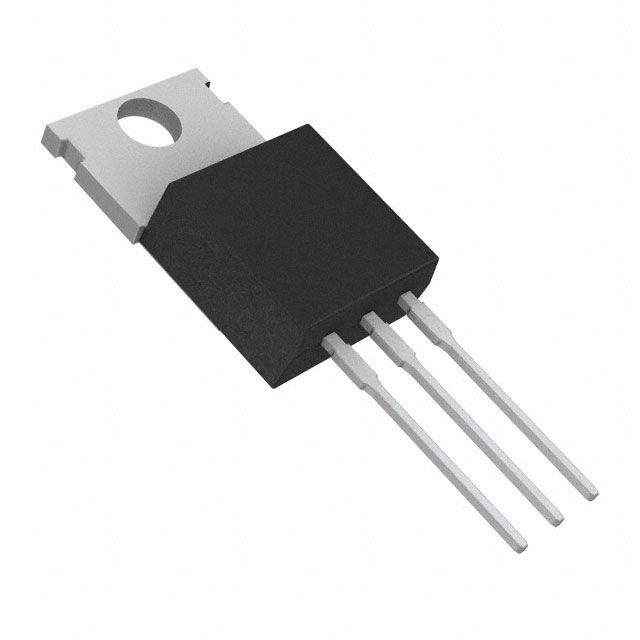

Product Images
