PNP Bipolar Power Transistor featuring a 100V Collector-Emitter Voltage (VCEO) and 100V Collector Base Voltage (VCBO). This component offers a continuous collector current of 6A and a maximum power dissipation of 2W. With a transition frequency of 3MHz and a minimum hFE of 30, it is housed in a TO-220-3 package. Operating temperature range is -65°C to 150°C, and it is RoHS compliant.
Frequency3MHz
PackageTO-220-3
Current Rating-6A
PolarityPNP
Quick Jump:
Technical Specifications
Onsemi TIP42CG technical specifications.
General
| Package/Case | TO-220-3 |
| Collector Base Voltage (VCBO) | 100V |
| Collector Emitter Breakdown Voltage | 100V |
| Collector Emitter Saturation Voltage | 1.5V |
| Collector Emitter Voltage (VCEO) | 100V |
| Collector-emitter Voltage-Max | 1.5V |
| Current Rating | -6A |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 3MHz |
| Gain Bandwidth Product | 3MHz |
| Height | 0.62inch |
| hFE Min | 30 |
| Lead Free | Lead Free |
| Length | 0.404inch |
| Max Collector Current | 6A |
| Max Frequency | 3MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 2W |
| Number of Elements | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | PNP |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 3MHz |
| DC Rated Voltage | -100V |
| Width | 0.19inch |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi TIP42CG Datasheet
Download the complete datasheet for Onsemi TIP42CG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

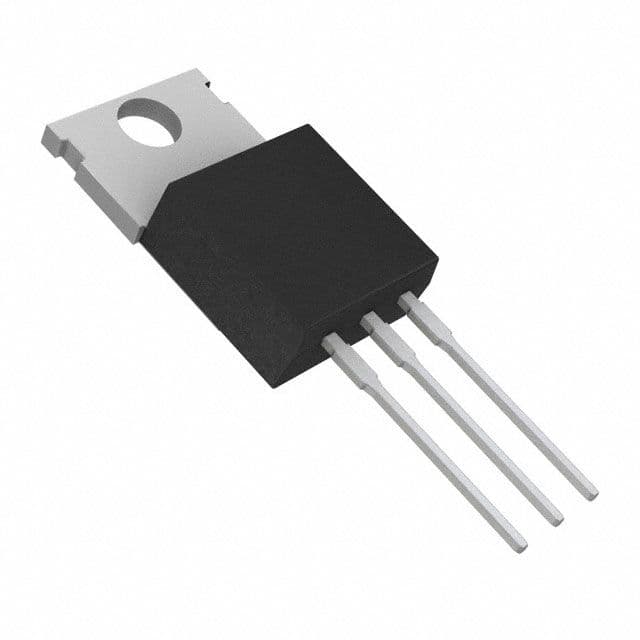

Product Images
