NPN Darlington transistor array featuring seven independent channels in a 16-pin SOIC package. Offers a 50V collector-emitter breakdown voltage and a maximum collector current of 500mA per channel. Includes a typical collector-emitter saturation voltage of 1.6V and a minimum DC current gain (hFE) of 1000. Surface mountable and supplied on tape and reel, this component is RoHS and Halogen Free compliant.
PackageSOIC
MountingSurface Mount
PolarityNPN
Quick Jump:
Technical Specifications
Onsemi ULN2003ADR2G technical specifications.
General
| Package/Case | SOIC |
| Collector Emitter Breakdown Voltage | 50V |
| Collector Emitter Saturation Voltage | 1.6V |
| Collector Emitter Voltage (VCEO) | 50V |
| Collector-emitter Voltage-Max | 1.6V |
| Halogen Free | Halogen Free |
| Height | 1.5mm |
| hFE Min | 1000 |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Breakdown Voltage | 50V |
| Max Collector Current | 500mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of Elements | 7 |
| Output Voltage | 50V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi ULN2003ADR2G Datasheet
Download the complete datasheet for Onsemi ULN2003ADR2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

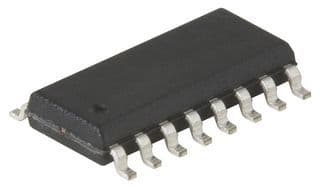

Product Images
