PackageSOT-23-6
Current Rating-1.9A
MountingSurface Mount
PolarityP-CHANNEL
Quick Jump:
Technical Specifications
Onsemi USB10H technical specifications.
General
Package/Case
SOT-23-6
Continuous Drain Current (ID)
1.9A
Current Rating
-1.9A
Drain to Source Breakdown Voltage
-20V
Drain to Source Resistance
170mR
Drain to Source Voltage (Vdss)
20V
Fall Time
9ns
Gate to Source Voltage (Vgs)
8V
Input Capacitance
441pF
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
700mW
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Polarity
P-CHANNEL
Power Dissipation
960mW
Rds On Max
170mR
RoHS Compliant
Yes
Turn-Off Delay Time
14ns
DC Rated Voltage
-20V
Compliance
RoHS
Compliant
Datasheet
Onsemi USB10H Datasheet
Download the complete datasheet for Onsemi USB10H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

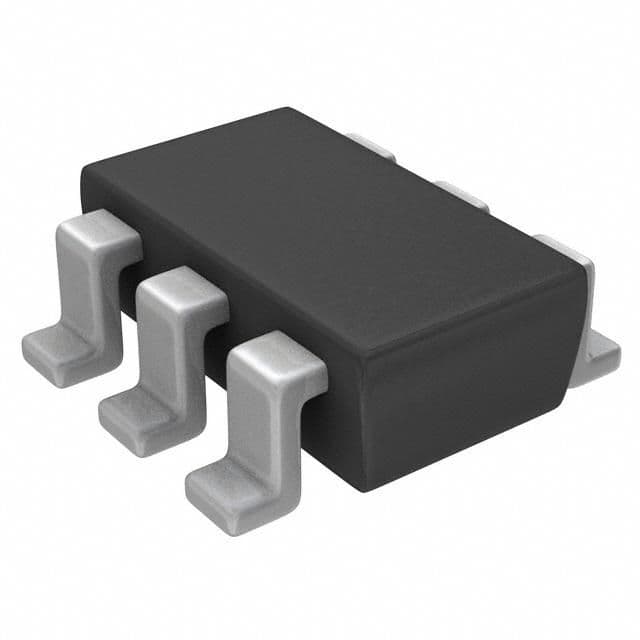

Product Images
