Solid State Relay (SSR) module featuring a 3A load current rating and 240V DC control voltage. This SPST relay offers 4kV isolation voltage and operates within a 24V to 280V AC supply voltage range, with a maximum output voltage of 280V AC. Rated for 3A input and output current, it supports a wide operating temperature range from -40°C to 100°C. Approvals include UL, CSA, and CE, with screw termination and panel mount options.
PackageModule
Current Rating3A
MountingScrew, Panel
Quick Jump:
Technical Specifications
Opto 22 240D3 technical specifications.
General
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Control Voltage | 32V |
| Current Rating | 3A |
| Depth | 19.6mm |
| Height | 19.6mm |
| Input Current | 3A |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 44.5mm |
| Load Current | 3A |
| Manufacturer Series | Power |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 240V |
| Max Supply Voltage (AC) | 280V |
| Min Supply Voltage (AC) | 24V |
| Max Voltage Rating (AC) | 280V |
| Mount | Screw, Panel |
| Output Voltage | 280V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Screw |
| Throw Configuration | SPST |
| Width | 57.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Opto 22 240D3 Datasheet
Download the complete datasheet for Opto 22 240D3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

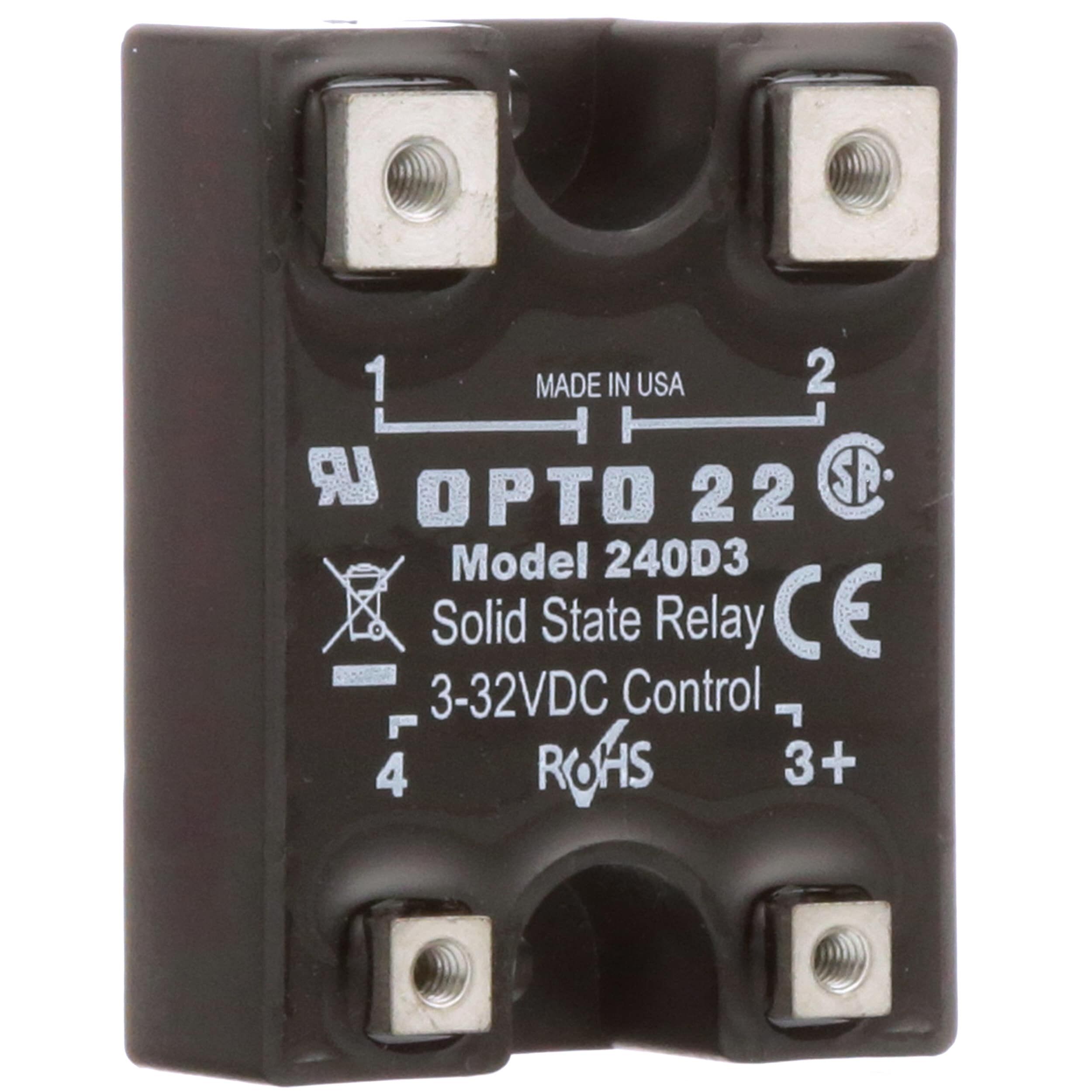

Product Images
