AC Solid State Relay, 45A load current, 240V AC output voltage, and 280V AC maximum output voltage. Features 32V control voltage, 45A input current, and AC input type. Offers 4kV isolation voltage and operates within a -40°C to 100°C temperature range. Mounts via screw or panel, with screw termination. Approvals include UL, CSA, and CE.
PackageModule
Current Rating45A
MountingScrew, Panel
Quick Jump:
Technical Specifications
Opto 22 240D45 technical specifications.
General
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Control Voltage | 32V |
| Current Rating | 45A |
| Depth | 24.5mm |
| Input Current | 45A |
| Input Type | AC |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 44.5mm |
| Load Current | 45A |
| Manufacturer Series | Power Solid State Relay Unit |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 240V |
| Max Supply Voltage (AC) | 280V |
| Min Supply Voltage (AC) | 24V |
| Max Voltage Rating (AC) | 280V |
| Mount | Screw, Panel |
| Output Current | 45A |
| Output Voltage | 280V |
| RoHS Compliant | Yes |
| Termination | Screw |
| Throw Configuration | SPST |
| Width | 57.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Opto 22 240D45 Datasheet
Download the complete datasheet for Opto 22 240D45 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

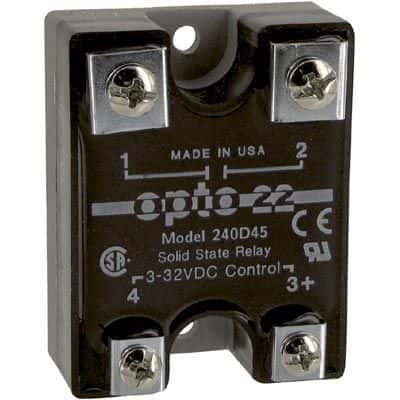

Product Images
