Optical Solid State Relay (SSR) with 2A load current and 264V maximum output voltage. Features 3000V isolation and DC input. SIP package with through-hole mounting and PC pin termination. Lead-free and RoHS compliant.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic AQG22112 technical specifications.
General
| Package/Case | SIP |
| Height | 20.5mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 24.5mm |
| Load Current | 2A |
| Max Output Current | 2A |
| Max Output Voltage | 264V |
| Mount | Through Hole |
| Output Current | 2A |
| Package Quantity | 20 |
| Packaging | Bulk |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | AQ-G |
| Termination | PC Pin |
| Test Voltage | 3kV |
| Throw Configuration | SPST |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQG22112 Datasheet
Download the complete datasheet for Panasonic AQG22112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

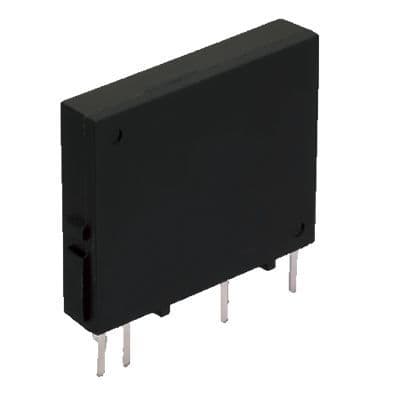

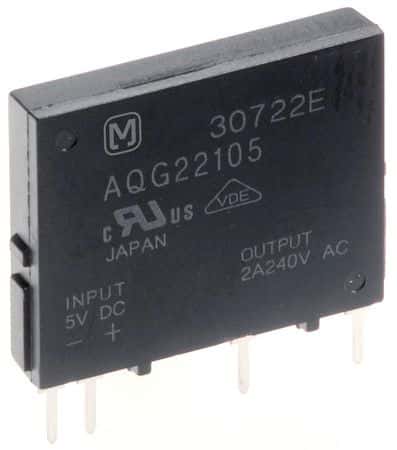

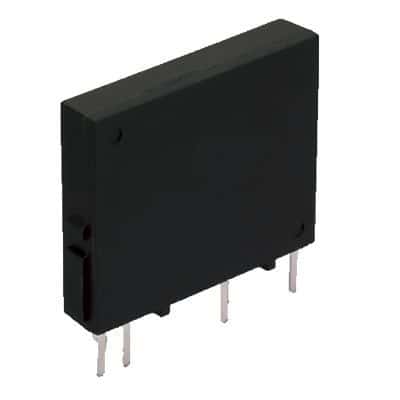

Product Images
