Single-channel optical solid-state relay (SSR) with 2A load current and 264V maximum output voltage. Features 3000V isolation, 24V DC control voltage, and SPST contact configuration. Designed for through-hole PCB mounting with PC pin termination. Operates across a wide temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackageSIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic AQG22124 technical specifications.
General
| Package/Case | SIP |
| Contact Type | 1 closure |
| Control Voltage | 24V |
| Depth | 4.5mm |
| Height | 20.5mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 24.5mm |
| Load Current | 2A |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 264V |
| Mount | Through Hole, PCB |
| Number of Contacts | 1 |
| Output Current | 2A |
| Output Voltage | 264V |
| Package Quantity | 20 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | AQ-G |
| Termination | PC Pin |
| Test Voltage | 3kV |
| Throw Configuration | SPST |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQG22124 Datasheet
Download the complete datasheet for Panasonic AQG22124 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

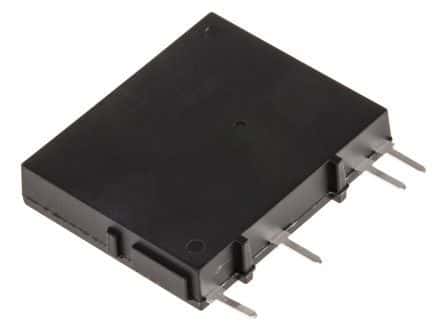

Product Images
