1-Channel Optical Solid State Relay (SSR) with 5kV isolation, designed for through-hole PCB mounting. Features a 900mA load current capability and a 600V maximum output voltage. Operates with a 20mA forward current and 50mA input current, accepting DC input. This RoHS compliant component is housed in a DIP package, offering VDE and cULus approvals.
PackageDIP
Current Rating900mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic AQH2213 technical specifications.
General
| Approvals | VDE, cULus |
| Package/Case | DIP |
| Current Rating | 900mA |
| Depth | 6.4mm |
| Forward Current | 20mA |
| Height | 3.4mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 9.78mm |
| Load Current | 900mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 600V |
| Max Supply Voltage (AC) | 600V |
| Max Voltage Rating (AC) | 600V |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Output Current | 900mA |
| Output Voltage | 600V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 900mA |
| RoHS Compliant | Yes |
| Series | AQ-H |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Turn-On Delay Time | 100us |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQH2213 Datasheet
Download the complete datasheet for Panasonic AQH2213 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

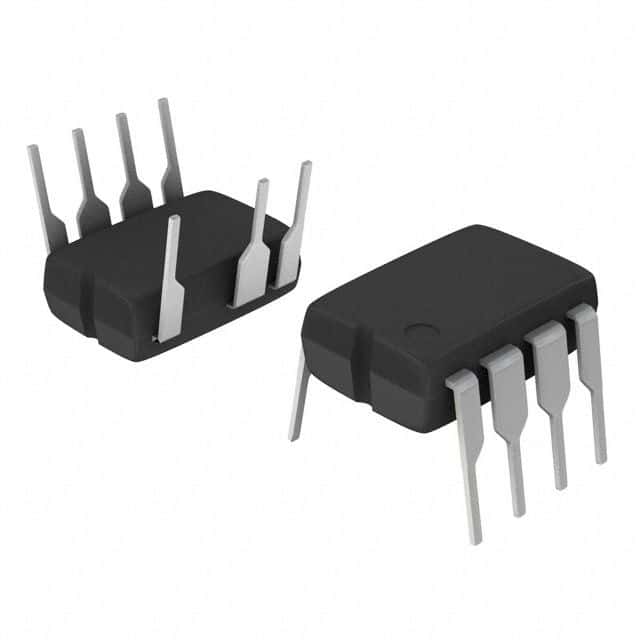

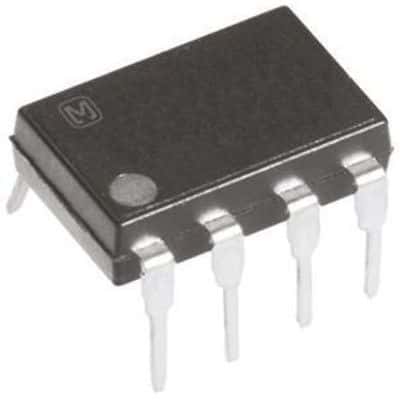

Product Images
