Solid State Relay (SSR) with transistor output, featuring 1-channel operation and 1500V isolation. This DIP-packaged device offers a 500mA load current capability and a 60V maximum output voltage. It operates with DC input current up to 50mA and boasts a maximum on-state resistance of 2 Ohms. Designed for reliability, it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
PackageDIP
Power550mW
Quick Jump:
Technical Specifications
Panasonic AQV112KL technical specifications.
General
| Package/Case | DIP |
| Contact Type | 1 maker |
| Depth | 6.4mm |
| Height | 3.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Load Current | 500mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 60V |
| Max Power Dissipation | 550mW |
| On-state Resistance-Max | 2R |
| Output Voltage | 60V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 550mW |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | PC Pin |
| Test Voltage | 1.5kV |
| Throw Configuration | SPST |
| Turn-On Delay Time | 5ms |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQV112KL Datasheet
Download the complete datasheet for Panasonic AQV112KL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

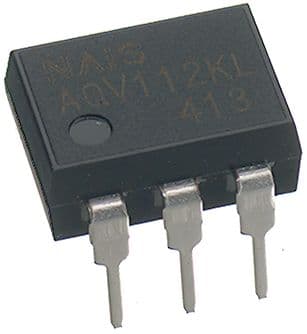

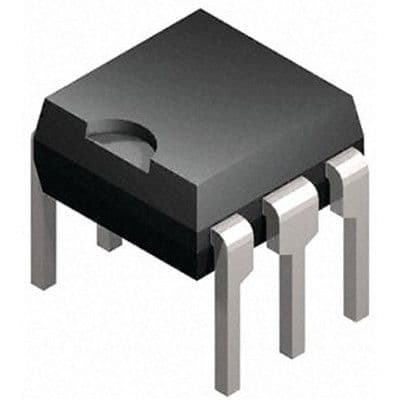

Product Images
