Optical Solid State Relay (SSR) with DC input, featuring a 400V maximum output voltage and 500mA output current. This through-hole mount component offers 1.5kV isolation voltage and a maximum power dissipation of 410mW. Designed with a DIP package, it operates within a temperature range of -40°C to 85°C and has a maximum on-state resistance of 16 Ohms. The relay is RoHS compliant and utilizes PC pin termination.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic AQV204 technical specifications.
General
| Package/Case | DIP |
| Forward Current | 2.4mA |
| Height | 3.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Load Current | 150mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 400V |
| Max Power Dissipation | 410mW |
| Mount | Through Hole |
| On-state Resistance-Max | 16R |
| Output Current | 500mA |
| Output Voltage | 400V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQV204 Datasheet
Download the complete datasheet for Panasonic AQV204 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

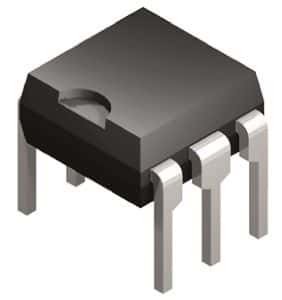

Product Images
