1-Channel, SPST, DC input, transistor output solid-state relay (SSR) featuring 130mA load current and 350V AC voltage rating. Offers 1.5kV isolation voltage and 35R maximum on-state resistance. This through-hole mount, DIP-packaged relay operates within a -40°C to 85°C temperature range and is RoHS compliant.
PackageDIP
Current Rating130A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic AQV210E technical specifications.
General
| Approvals | cULus |
| Package/Case | DIP |
| Current Rating | 130A |
| Depth | 6.4mm |
| Forward Current | 1.1mA |
| Height | 3.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Load Current | 130mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 130mA |
| Max Output Voltage | 350V |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| On-State Resistance | 23R |
| On-state Resistance-Max | 35R |
| Output Current | 130mA |
| Output Voltage | 350V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | PC Pin |
| Test Voltage | 1.5kV |
| Throw Configuration | SPST |
| Turn-On Delay Time | 2ms |
| Voltage Rating (AC) | 350V |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQV210E Datasheet
Download the complete datasheet for Panasonic AQV210E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

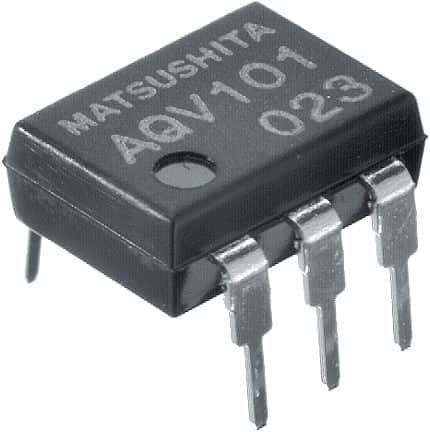

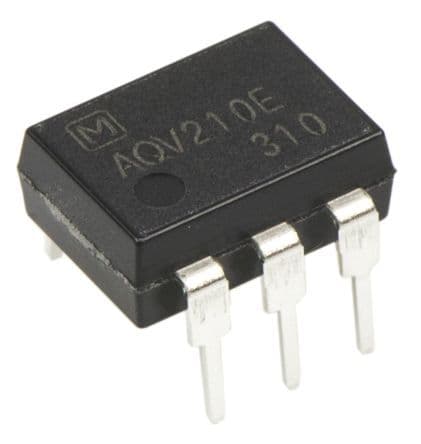

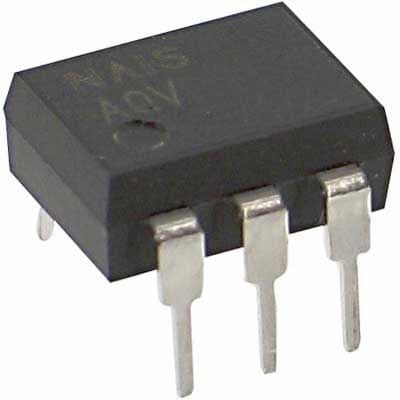

Product Images
