Optical Solid State Relay (SSR) with transistor output, featuring a 1-channel SPST configuration. This through-hole mount component offers 1.5kV isolation voltage and operates with a DC input current of 50mA. It handles a load current of 50mA and a maximum output voltage of 600V, with a maximum on-state resistance of 120 Ohms. The device is RoHS compliant and lead-free, packaged in a DIP case suitable for PC pin termination.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic AQV216 technical specifications.
General
| Package/Case | DIP |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Load Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Output Voltage | 600V |
| Mount | Through Hole |
| On-state Resistance-Max | 120R |
| Output Current | 50mA |
| Output Voltage | 600V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | PC Pin |
| Test Voltage | 1.5kV |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQV216 Datasheet
Download the complete datasheet for Panasonic AQV216 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

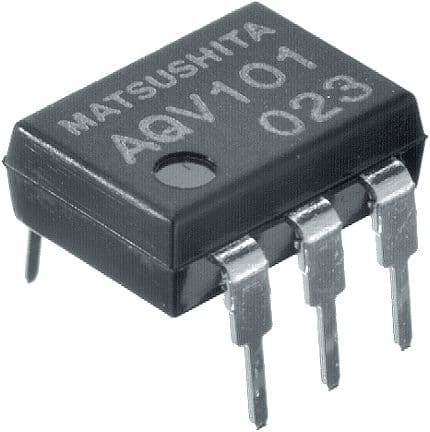

Product Images
