PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQV216SX technical specifications.
General
Package/Case
SOP
Input Current
50mA
Input Type
DC
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Length
6.3mm
Load Current
40mA
Max Input Current
50mA
Max Output Current
40mA
Max Output Voltage
600V
Max Power Dissipation
500mW
Mount
Surface Mount
On-State Resistance
120R
On-state Resistance-Max
120R
Output Voltage
600V
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
PhotoMOS™ AQV
Termination
Gull Wing
Test Voltage
1.5kV
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Panasonic AQV216SX Datasheet
Download the complete datasheet for Panasonic AQV216SX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

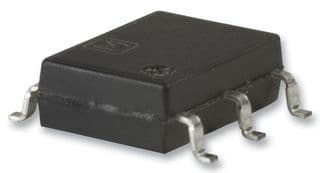

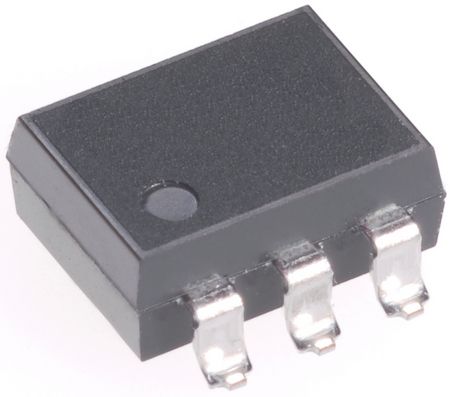

Product Images
