Optical Solid State Relay (SSR) with SPST configuration. Features DC input with a 50mA input current requirement. Offers 400V maximum output voltage and 50mA output current. Isolation voltage rated at 1.5kV. Packaged in a DIP through-hole mount with PC pin termination. RoHS compliant and lead-free.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic AQV224N technical specifications.
General
Package/Case
DIP
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Load Current
50mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
400V
Mount
Through Hole
On-state Resistance-Max
100R
Output Current
50mA
Output Voltage
400V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQV
Termination
PC Pin
Test Voltage
1.5kV
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Panasonic AQV224N Datasheet
Download the complete datasheet for Panasonic AQV224N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

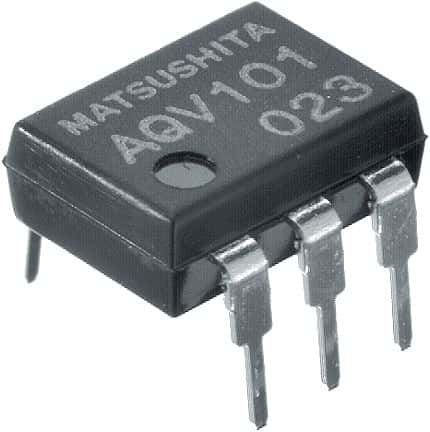

Product Images
