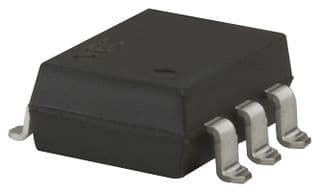

Surface mount solid state relay featuring optical isolation up to 1.5kV. This SPST relay handles a DC input current of 50mA and switches loads up to 200V with a maximum output current of 70mA. It offers an on-state resistance of 50 Ohms and is designed with gull wing terminations for SMD/SMT applications. The component is lead-free and RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQV227NA technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 3.6mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Load Current | 70mA |
| Max Input Current | 50mA |
| Max Output Current | 70mA |
| Max Output Voltage | 200V |
| Mount | Surface Mount |
| On-State Resistance | 50R |
| On-state Resistance-Max | 50R |
| Output Voltage | 200V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
