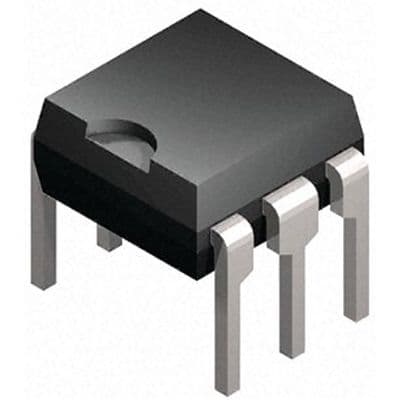

Optical Solid State Relay (SSR) with transistor output, featuring a 1-channel SPST configuration. This surface mount device offers 1500V isolation voltage and operates with a DC input current of 50mA. It supports a maximum output voltage of 400V and a load current of 120mA, with a maximum on-state resistance of 50 Ohms. The relay is RoHS compliant and lead-free, packaged in a DIP-6 footprint with gull wing termination for SMD/SMT mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic AQV234A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic AQV234A technical specifications.
| Approvals | cULus |
| Package/Case | SMD/SMT |
| Height | 3.6mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 400V |
| Mount | Surface Mount |
| On-state Resistance-Max | 50R |
| Output Current | 120mA |
| Output Voltage | 400V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | Gull Wing |
| Test Voltage | 1.5kV |
| Throw Configuration | SPST |
| Width | 6.4mm |
| RoHS | Compliant |
