Surface mount solid state relay featuring DC input and SPST configuration. Offers 200mA load current capability with a maximum output voltage of 250V. Provides 1.5kV isolation voltage and a maximum on-state resistance of 8 Ohms. Operates within a temperature range of -40°C to 85°C and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQV453AX technical specifications.
General
Package/Case
SMD/SMT
Height
3.6mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Length
8.8mm
Load Current
200mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Voltage
250V
Mount
Surface Mount
On-state Resistance-Max
8R
Output Current
200mA
Output Voltage
250V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
PhotoMOS™ AQV
Termination
Gull Wing
Test Voltage
1.5kV
Throw Configuration
SPST
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQV453AX Datasheet
Download the complete datasheet for Panasonic AQV453AX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

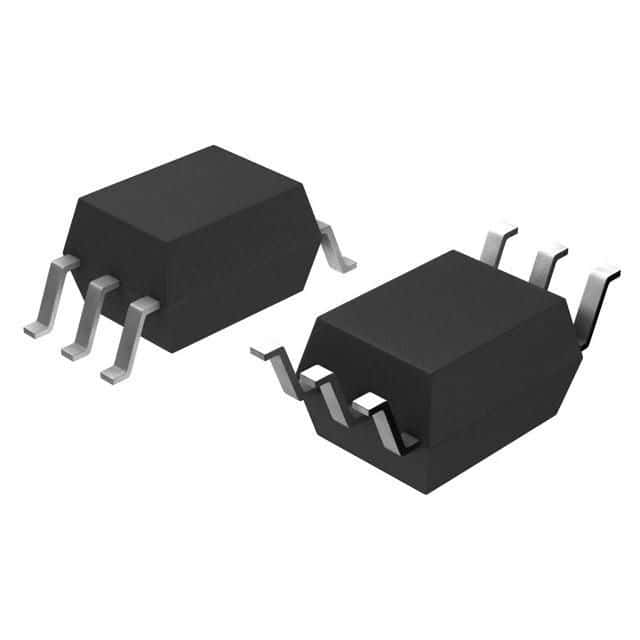

Product Images
