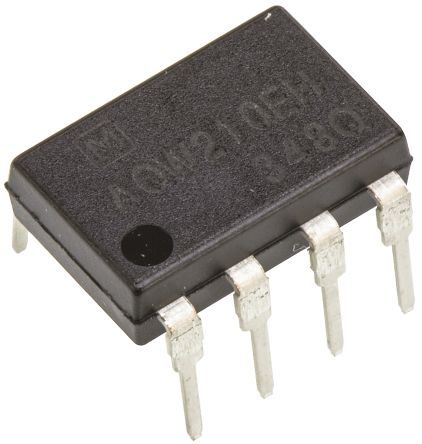

Dual-channel, optical solid-state relay featuring a transistor output and DIP-8 package. Offers 5kV isolation voltage and supports a maximum output current of 120mA at up to 350V. Input requires 50mA DC forward current with a maximum input voltage of 1.5V. Operating temperature range is -40°C to 85°C, with a 2ms turn-on delay. Lead-free and RoHS compliant, suitable for PCB through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic AQW210EH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic AQW210EH technical specifications.
| Approvals | cULus |
| Package/Case | DIP |
| Contact Type | 2 makers |
| Depth | 6.4mm |
| Forward Current | 1.2mA |
| Height | 3.2mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 9.86mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Mount | Through Hole, PCB |
| On-State Resistance | 18R |
| On-state Resistance-Max | 25R |
| Output Current | 120mA |
| Output Voltage | 350V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 850mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQW |
| Termination | PC Pin |
| Test Voltage | 5kV |
| Throw Configuration | SPST, DPST |
| Turn-On Delay Time | 2ms |
| Width | 6.4mm |
| RoHS | Compliant |
