Panasonic
AQW223R2S
Transistor Output SSR, 2-Channel, 1500V Isolation, 0.369 X 0.173 INCH, 0.083 INCH HEIGHT, ROHS COMPLIANT, MINIATURE, SOP-8
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQW223R2S technical specifications.
General
Package/Case
SOP
Input Current
50mA
Input Type
DC
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Length
9.37mm
Load Current
140mA
Max Input Current
50mA
Max Output Current
140mA
Max Output Voltage
250V
Max Power Dissipation
650mW
Mount
Surface Mount
On-state Resistance-Max
15R
Output Voltage
250V
Package Quantity
100
Packaging
Rail/Tube
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQW
Termination
Gull Wing
Throw Configuration
DPST
Compliance
RoHS
Compliant
Datasheet
Panasonic AQW223R2S Datasheet
Download the complete datasheet for Panasonic AQW223R2S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

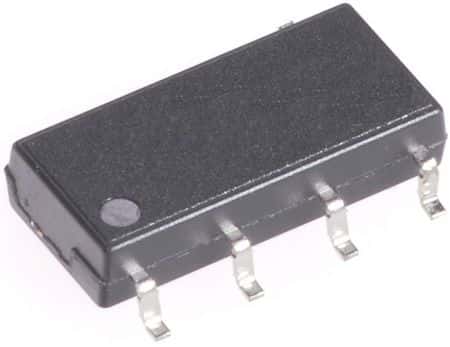

Product Images
