2-channel, surface mount solid-state relay (SSR) featuring optical isolation with a 5kV rating. This transistor output SSR offers a 120mA maximum output current and a 350V maximum output voltage. Designed for DC input, it requires a maximum input voltage of 1.5V and a maximum input current of 50mA. The component operates within a temperature range of -40°C to 85°C and is RoHS compliant.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQW610EHA technical specifications.
General
Package/Case
SMD/SMT
Forward Current
1.3mA
Height
3.6mm
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Length
9.78mm
Load Current
120mA
Max Input Current
50mA
Max Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
120mA
Max Output Voltage
350V
Mount
Surface Mount
On-state Resistance-Max
25R
Output Current
120mA
Output Voltage
350V
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
PhotoMOS™ AQW
Termination
Gull Wing
Throw Configuration
SPST, DPST
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQW610EHA Datasheet
Download the complete datasheet for Panasonic AQW610EHA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

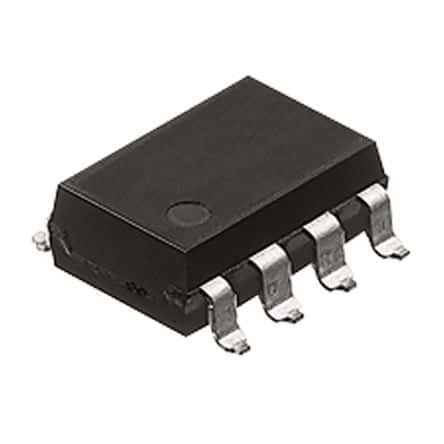

Product Images
