Surface mount solid state relay featuring DC input and SPST/DPST configurations. Delivers 100mA load current at up to 350V output voltage with 1.5kV isolation. Operates within a -40°C to 85°C temperature range, requiring 50mA input current. SOP package with gull wing termination, RoHS compliant and lead-free.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQW610SX technical specifications.
General
Package/Case
SOP
Height
2.1mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Length
9.37mm
Load Current
100mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
350V
Mount
Surface Mount
On-State Resistance
25R
On-state Resistance-Max
25R
Output Current
100mA
Output Voltage
350V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQW
Termination
Gull Wing
Throw Configuration
SPST, DPST
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQW610SX Datasheet
Download the complete datasheet for Panasonic AQW610SX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

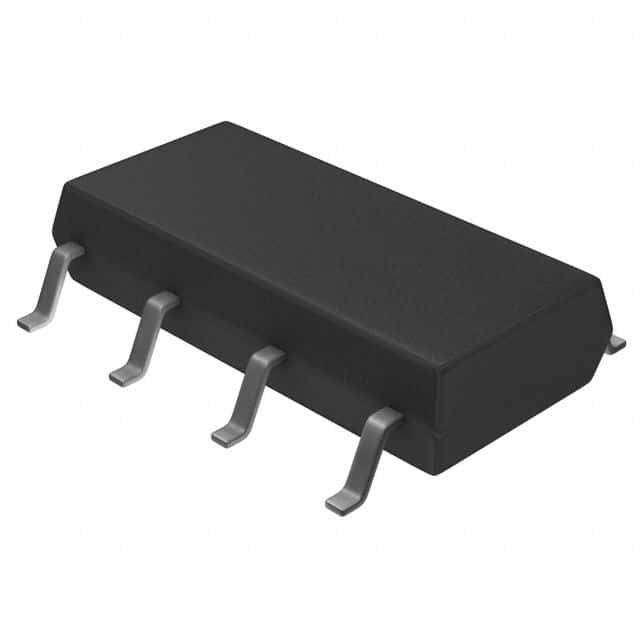

Product Images
