Surface mount solid state relay featuring a 1-channel, SPST configuration with a 5kV isolation voltage. This optical relay offers a DC input type with a maximum input current of 50mA, driving a transistor output. It supports a load current of up to 120mA and a maximum output voltage of 350V, with a maximum on-state resistance of 25 Ohms. The component is housed in a DIP-4 package with gull wing terminations and operates within a temperature range of -40°C to 85°C.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY210HLA technical specifications.
General
| Package/Case | SMD/SMT |
| Forward Current | 1.2mA |
| Height | 2.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 6.4mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Mount | Surface Mount |
| On-state Resistance-Max | 25R |
| Output Current | 120mA |
| Output Voltage | 350V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Test Voltage | 5kV |
| Throw Configuration | SPST |
| Width | 4.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY210HLA Datasheet
Download the complete datasheet for Panasonic AQY210HLA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

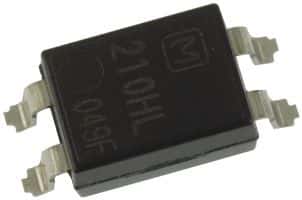

Product Images
