Surface mount, transistor output, single-channel solid-state relay featuring 1.5kV isolation. This optical relay operates with a DC input type, requiring 50mA maximum input current and 1.5V maximum input voltage. It supports a 120mA maximum output current and 350V maximum output voltage, with a maximum on-state resistance of 35 Ohms. The component is housed in a compact SOP package with gull wing termination, suitable for tape and reel packaging.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY210KSZ technical specifications.
General
| Package/Case | SOP |
| Forward Current | 1.1mA |
| Height | 2.1mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Max Power Dissipation | 350mW |
| Mount | Surface Mount |
| On-state Resistance-Max | 35R |
| Output Current | 120mA |
| Output Voltage | 350V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY210KSZ Datasheet
Download the complete datasheet for Panasonic AQY210KSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

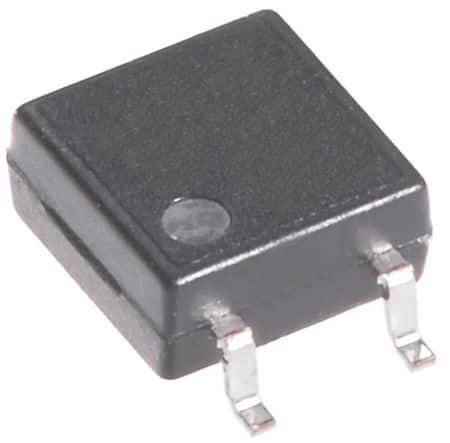

Product Images
