Surface mount, single-pole, single-throw (SPST) solid-state relay (SSR) featuring transistor output and 1.5kV isolation. Operates with DC input current up to 50mA and a maximum input voltage of 1.5V. Delivers up to 500mA load current at a maximum output voltage of 60V, with an on-state resistance of 2.5 Ohms. Encased in a compact SOP package measuring 4.4mm x 4.3mm x 2.1mm, suitable for tape and reel packaging. Operating temperature range spans from -40°C to 85°C, with RoHS compliance.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY212SX technical specifications.
General
| Package/Case | SOP |
| Height | 2.1mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Load Current | 500mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| On-State Resistance | 2.5R |
| On-state Resistance-Max | 2.5R |
| Output Current | 500mA |
| Output Voltage | 60V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY212SX Datasheet
Download the complete datasheet for Panasonic AQY212SX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

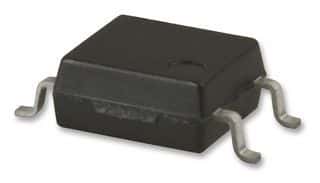

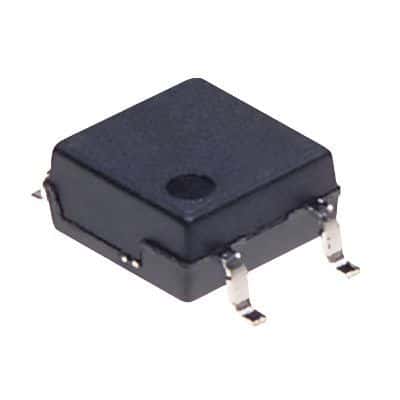

Product Images
